The LTM8061IV-4.2#PBF from Linear Technology is a highly versatile and efficient uModule (micromodule) regulator designed to cater to a broad range of power supply requirements. This compact, integrated solution combines a switching regulator with all necessary support components in a single package, simplifying the design process and accelerating time-to-market for designers and engineers.

Key Features:

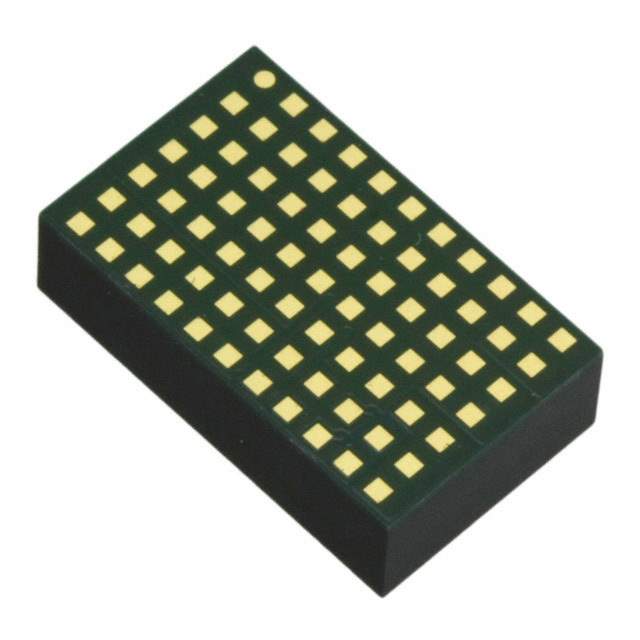

• Integrated Design: The LTM8061IV-4.2#PBF incorporates a DC/DC converter, inductors, control circuitry, and passive components within its compact LGA package. This level of integration not only saves board space but also reduces the bill of materials and potential points of failure in the system.
• VIN Range: The device operates over a wide input voltage range from 6V to 36V, making it suitable for a variety of applications, from automotive to industrial systems that require a stable and reliable power supply.
• Adjustable Output: Its output voltage can be adjusted from 1.2V to 24V, which allows for flexibility in powering different circuits that require various voltage levels.
• High Efficiency: The LTM8061IV-4.2#PBF features high efficiency and low power dissipation, which is critical for thermal management and overall system reliability, especially in space-constrained applications.
• Thermal Performance: The module is encapsulated in a thermally efficient package, which assists in heat dissipation and ensures stable performance even at full load and elevated temperatures.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection, safeguarding the module and the downstream circuitry from potential damage due to abnormal operating conditions.

Applications:

The LTM8061IV-4.2#PBF is ideal for use in a diverse array of applications, including but not limited to telecommunications, data processing systems, distributed power systems, battery-operated devices, and industrial controls. Its robustness and adaptability make it an excellent choice for designers seeking a reliable power solution that can accommodate a wide range of input sources and output requirements.

Product Code: LTM8061IV-4.2#PBF

Manufacturer: Linear Technology
