Same model may have multiple batches, images only for reference.

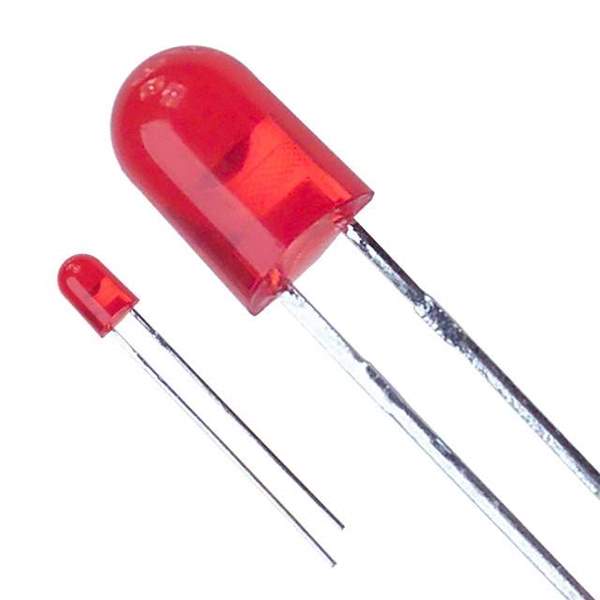

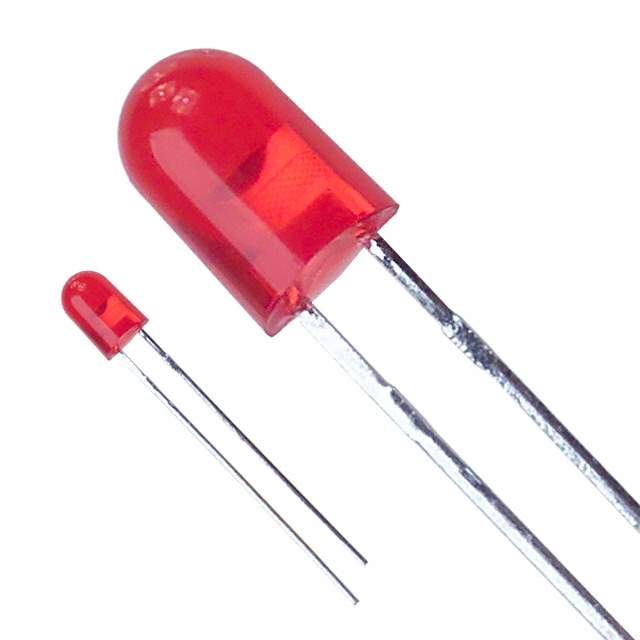

LTL-10223W

Name: LTL-10223W
Brand: Lite-On Inc.
SKU: 1331818
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LTL-10223W
Manufacturer	Lite-On Inc.
Catalog	LED Indication - Discrete
Description	LED RED DIFFUSED T/H / Red 623nm LED Indication - Discrete 2V Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Manufacturer	Lite-On Inc.
Packaging	Bulk
Color	Red
Configuration	Standard
Lens Color	Red
Lens Transparency	Diffused
Millicandela Rating	60mcd
Lens Style	Round with Domed Top
Lens Size	4.75mm Dia
Voltage - Forward (Vf) (Typ)	2V
Current - Test	10mA
Viewing Angle	60°
Mounting	Through Hole
Wavelength - Dominant	623nm
Wavelength - Peak	635nm
Case / Package	Radial
Height (Max)	7.20mm
Base Product Number	LTL-10223
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.41.0000
Other Part Number	LT1087,LTL10223W,160-1087
Standard Package	1,000
Win Source Part Number	1331818-LTL-10223W
Ultra Librarian 3D Model	Ultra Librarian LTL-10223W CAD Model

Alternative Products

Description

The LTL-10223W is a red LED indication with a millicandela rating of 60mcd.

Voltage-Forward (Vf) (Typ): 2V
Current-Test: 10mA
Manufacturer: Lite-On Inc.
Package: 1,000
Lens Transparency: Diffused
Lens Color: Red
Viewing Angle: 60°
Peak Wavelength: 635nm
RoHS Compliant: Yes
Height (max): 7.20mm
Mount: Through-Hole
Case/Package: Radial
