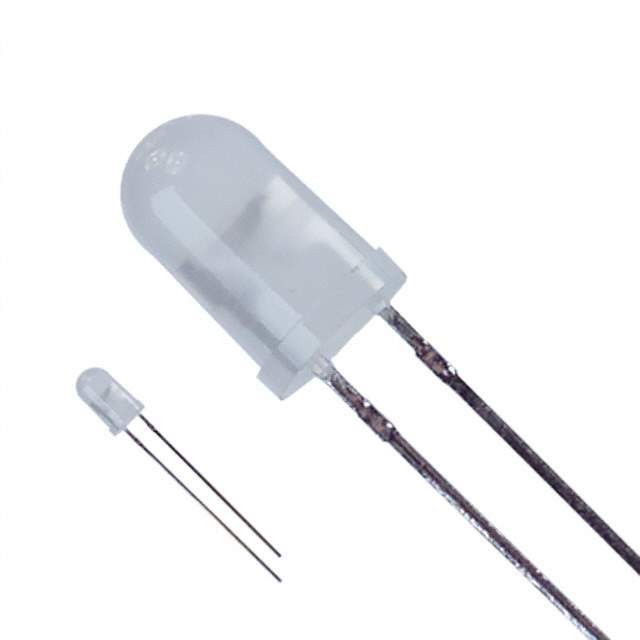

LTL-293SJW

Part No LTL-293SJW
Manufacturer Lite-On Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED DIFFUSED T/H / Green, Red 569nm Green, 638nm Red LED Indication - Discrete 2.1V Green, 1.8V Red Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Lite-On Inc.
Packaging Bulk
Color Green, Red
Configuration Bidirectional
Lens Color White
Lens Transparency Diffused
Millicandela Rating 40mcd Green, 90mcd Red
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.8V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 569nm Green, 638nm Red
Wavelength - Peak 565nm Green, 660nm Red
Case / Package Radial
Height (Max) 8.60mm
Base Product Number LTL-293
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number LTL293SJW,Q1167468,160-1038,LT1038
Standard Package 1,000
Win Source Part Number 1331815-LTL-293SJW
Ultra Librarian 3D Model Ultra Librarian LTL-293SJW CAD Model

Description

LTL-293SJW from Lite-On Inc. is a discrete LED indication component used where simple, reliable visual status feedback is needed in electronic equipment. Parts in this category are commonly designed into control panels, instrumentation, industrial interfaces, consumer products, and embedded systems to show power, fault, activity, or user-response conditions. Engineers often choose discrete indicator LEDs for their straightforward integration, low board-space impact, and clear human-machine signaling value. For maintenance and service teams, these components also support faster diagnostics by providing immediate visual confirmation of system state. The listed lifecycle status for LTL-293SJW is currently information not available, so teams should confirm long-term supply status directly with Lite-On Inc. or authorized distribution before committing to new production designs. RoHS compliance information is also not available in the provided data and should be verified through the latest manufacturer datasheet, compliance declaration, or distributor documentation before procurement for regulated markets.
