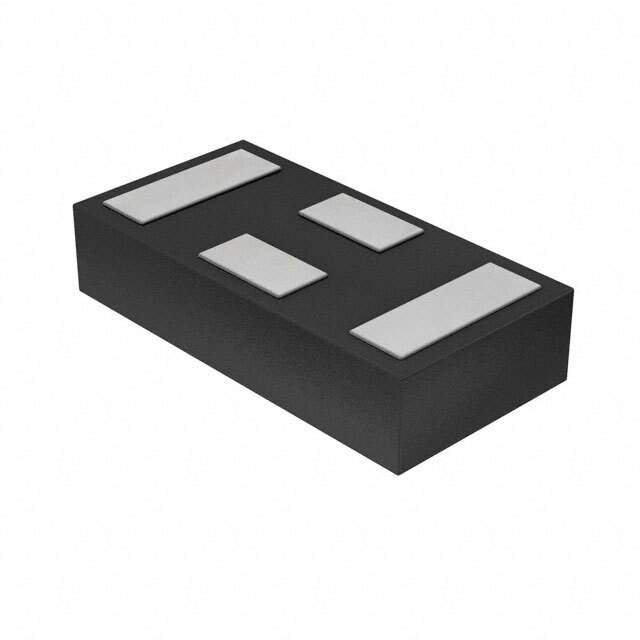

DEA162690LT-5051B1 Real Image
Same model may have multiple batches, images only for reference.

DEA162690LT-5051B1

Part No DEA162690LT-5051B1
Manufacturer TDK Corporation
Catalog RF Filters
Description MULTILAYER LOW PASS FILTER FOR L
Datasheet
DEA162690LT-5051B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 1.6815GHz Center
Bandwidth 2.017GHz
Filter Type Low Pass
Ripple 0.07dB
Insertion Loss 0.5dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Win Source Part Number 1032822-DEA162690LT-5051B1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA162690LT-5051B1 CAD Model

Description

The TDK Corporation DEA162690LT-5051B1 is a low pass filter designed for use in various applications.

  • Frequency Center: 1.6815GHz
  • Bandwidth: 2.017GHz
  • Insertion Loss: 0.5dB
  • Ripple: 0.07dB
  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Height: 0.028" (0.70mm)
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balance
