Same model may have multiple batches, images only for reference.

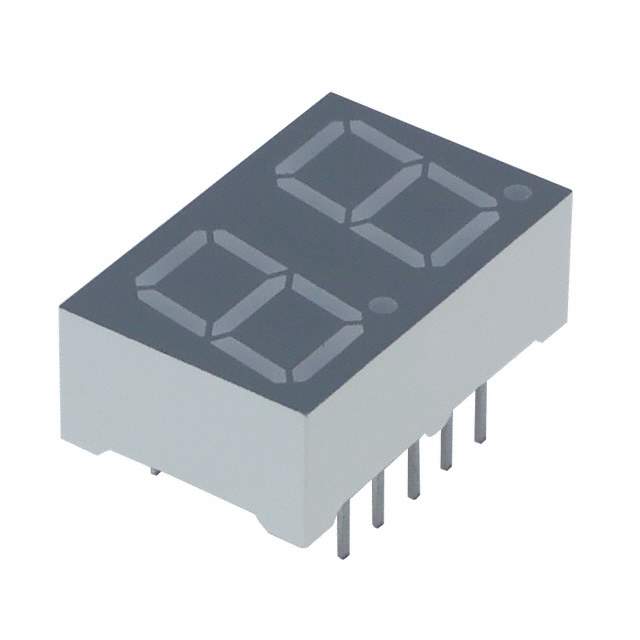

LTD-4608JF Real Image
Same model may have multiple batches, images only for reference.

LTD-4608JF

Part No LTD-4608JF
Manufacturer Lite-On Inc.
Catalog Display Modules - LED Character and Numeric
Description DISP 7SEG 0.39" DBL OR-YLW 10DIP  /  Display Modules - LED Character and Numeric Orange-Yellow 7-Segment 2 Character Common Anode 2.05V 20mA 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) 10-DIP (0.400", 10.16mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Lite-On Inc.
Package Tube
Number of Characters 2
Dimension 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm)
Digit/Alpha Size 0.39" (10.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Orange-Yellow
Voltage - Forward (Vf) (Typ) 2.05V
Current - Test 20mA
Millicandela Rating 0.65mcd
Wavelength - Peak 611nm
Power Dissipation (Max) 70mW
Package / Case 10-DIP (0.400", 10.16mm)
Base Product Number LTD-4608
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Names LTD4608JF,160-1536-5
Standard Package 24
Win Source Part Number 1072701-LTD-4608JF
Ultra Librarian 3D Model Ultra Librarian LTD-4608JF CAD Model

Description

The Lite-On LTD-4608JF is a display module LED character and numeric component that belongs to the optoelectronics category.

  • Display Type: 7-segment
  • Millicandela Rating: 0.65mcd
  • Voltage-Forward (Vf): 2.05V
  • Current Test: 20mA
  • Power Dissipation: 70mW
  • Package/Case: 10-DIP (0.400", 10.16mm)
  • Dimension: 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm)
  • Win Source Part Number: 1072701-LTD-4608JF
