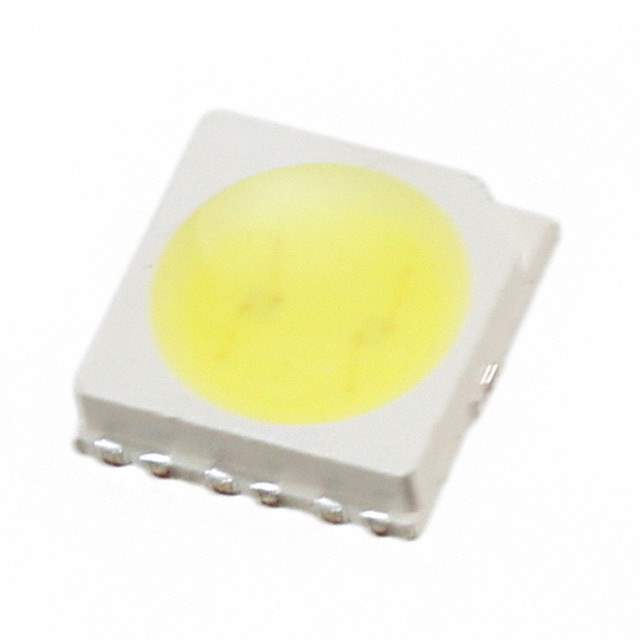

LTPL-P00DWS57 Real Image
Same model may have multiple batches, images only for reference.

LTPL-P00DWS57

Part No LTPL-P00DWS57
Manufacturer Lite-On Inc.
Catalog LED Lighting - White
Description LED LTPL COOL WHITE 5700K 6SMD  /  LED Lighting series White, Cool 5700K 3V 40mA 120° 2020 (5050 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lite-On Inc.
Series LTPL
Package Tape & Reel
Color White, Cool
CCT (K) 5700K
Flux @ 25°C, Current - Test 21lm (Typ)
Current - Test 40mA
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 85 lm/W
CRI (Color Rendering Index) 70 (Typ)
Current - Max 80mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.055" (1.40mm)
Thermal Resistance of Package 20°C/W
Base Product Number LTPL-P00
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 160-1857-1,160-1857-2,160-1857-6
Standard Package 1,000
Win Source Part Number 998890-LTPL-P00DWS57
Ultra Librarian 3D Model Ultra Librarian LTPL-P00DWS57 CAD Model

Description

The LTPL-P00DWS57 is an optoelectronic product manufactured by Lite-On Inc.

  • Color: White, Cool
  • Viewing Angle: 120 degrees
  • Package: Tape & Reel
  • Maximum Height: 0.055 inches (1.40mm)
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Maximum Current: 80mA
  • Typical Forward Voltage (Vf): 3V
  • Current Test: 40mA
  • CCT (K): 5700K
  • Flux @ 25°C, Current Test: 21lm (Typ)
  • Lumens/Watt @ Current Test: 85 lm/W
  • CRI (Color Rendering Index): 70 (Typ)
  • Thermal Resistance of Package: 20 degrees C/W
  • Package/Case: 2020 (5050 Metric)
  • MSL Level: 3 (168 Hours)
  • ECCN: EAR99
  • HTSUS Code: 8541.41.0000
