Same model may have multiple batches, images only for reference.

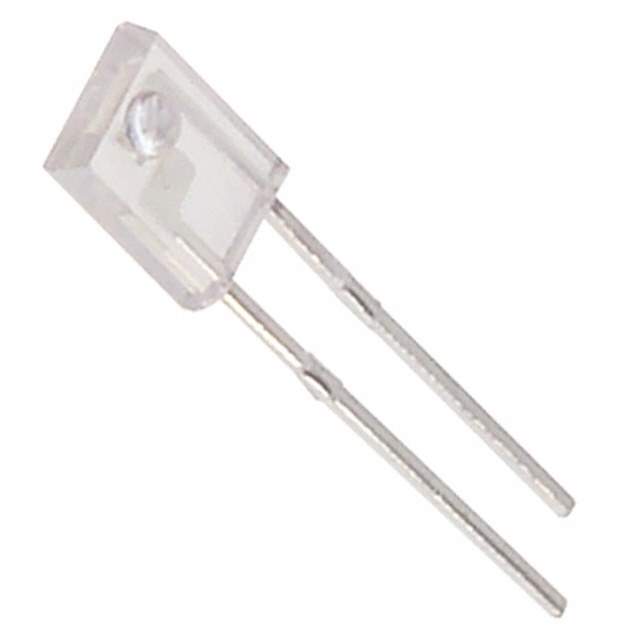

LTR-301 Real Image
Same model may have multiple batches, images only for reference.

LTR-301

Part No LTR-301
Manufacturer Lite-On Inc.
Catalog Optical Sensors - Phototransistors
Description PHOTOTRAN NPN IR CLEAR SIDE LOOK
Datasheet
LTR-301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 2.4mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Viewing Angle 70°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -40°C to 85°C (TA)
Dimension Radial
Win Source Part Number 1064379-LTR-301
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Lighting
Ultra Librarian 3D Model Ultra Librarian LTR-301 CAD Model

Description

The LTR-301 is a through-hole mounted sensor manufactured by Lite-On.

  • Viewing Angle: 70°
  • Wavelength: 940nm
  • Maximum Current Collector: 2.4mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Suitable for: Lighting
  • Current-Dark (Id) (Max): 100nA
  • Win Source Part Number: 1064379-LTR-301
