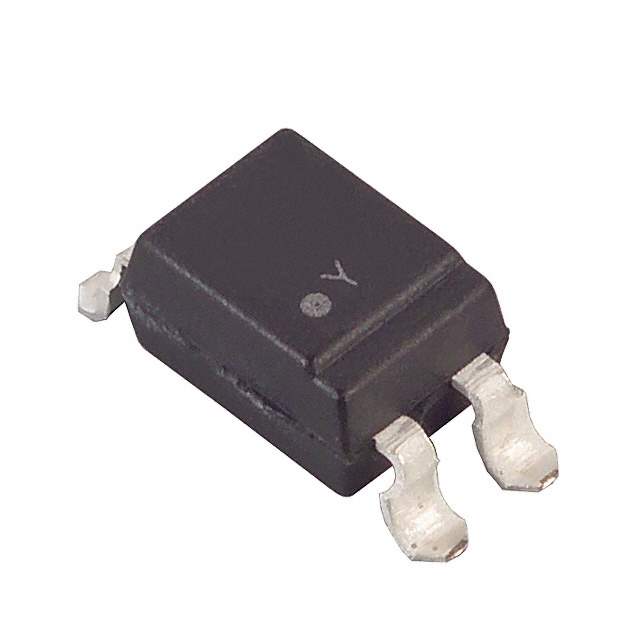

LTV-816S-TA1 Real Image
Same model may have multiple batches, images only for reference.

LTV-816S-TA1

Part No LTV-816S-TA1
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD
Datasheet
LTV-816S-TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -50°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 020735-LTV-816S-TA1
Ultra Librarian 3D Model Ultra Librarian LTV-816S-TA1 CAD Model

Description

The Lite-On Inc. LTV-816S-TA1 is a single channel transistor output type optocoupler.

  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Switching Turn-On Time: 4μs
  • Switching Turn-Off Time: 3μs
  • Package: 4-SMD
  • Temperature Range: -50°C to 110°C
  • Common Applications: Power supplies, motor control, audio equipment
