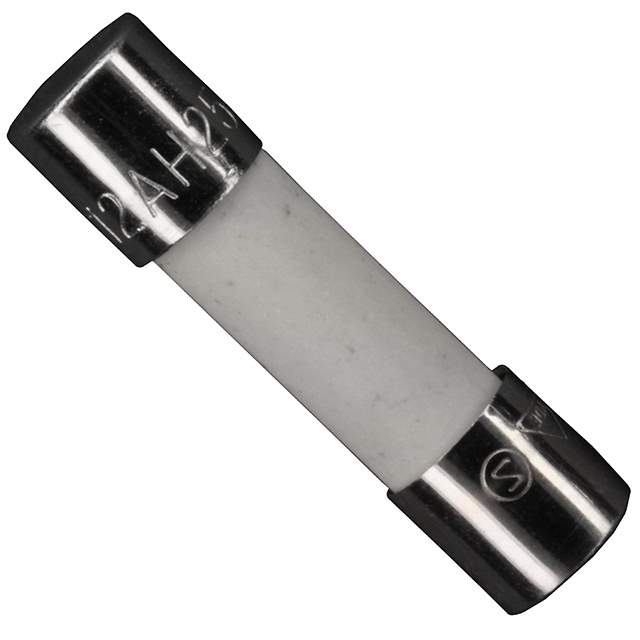

02151.25MXP Real Image
Same model may have multiple batches, images only for reference.

02151.25MXP

Part No 02151.25MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 1.25A 250VAC 5X20MM / 215 Series, 5 x 20 mm, Time-Lag (Slo-Blo®) Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 1.25A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 3.2
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.1074 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808570-02151.25MXP
Ultra Librarian 3D Model Ultra Librarian 02151.25MXP CAD Model

Description

Littelfuse Inc. brings you the 02151.25MXP ceramic cartridge fuse, part number 808570-02151.25MXP from Littelfuse Inc.

  • Voltage Rating: 250V AC
  • Type: slow-blow
  • Melting I2t: 3.2
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
  • DC Cold Resistance: 0.1074 Ohms
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Manufacturer Package: 5mm x 20mm
  • Popularity: medium
  • Supply and Demand Status: balanced
