Same model may have multiple batches, images only for reference.

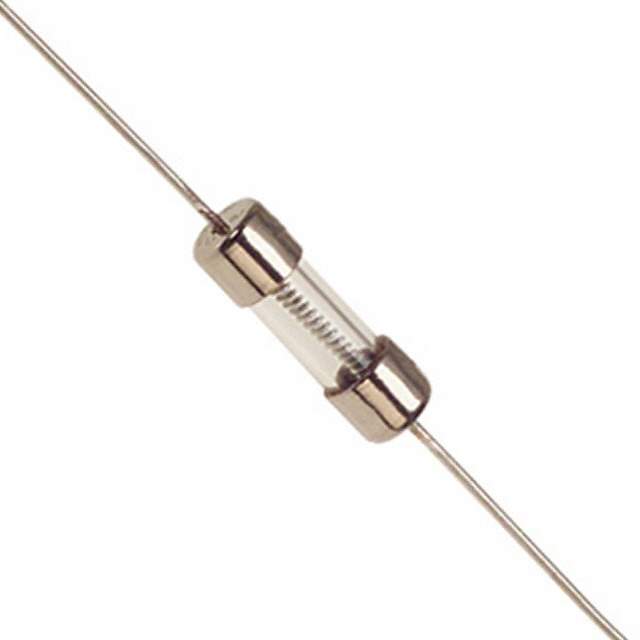

023003.5MXP Real Image
Same model may have multiple batches, images only for reference.

023003.5MXP

Part No 023003.5MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3.5A 250VAC 125VDC / 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.5A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Slow Blow
Manufacturer Package Cartridge, Non-Standard (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A AC, 10kA DC
Melting I2t 110
Approvals CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0312 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 802935-023003.5MXP
Ultra Librarian 3D Model Ultra Librarian 023003.5MXP CAD Model

Description

The Littelfuse Inc. 802935-023003.5MXP fuse from Littelfuse Inc. is a glass cartridge slow blow fuse.

  • Current Rating: 3.5A
  • Voltage Rating: 250V AC and 125V DC
  • DC Cold Resistance: 0.0312 Ohms
  • Breaking Capacity: 100A AC and 10kA DC @ rated voltage
  • Dimension: 0.177" Dia x 0.571" L
  • Mounting Type: Through hole
  • Approvals: CE, CSA, PSE, and UL
  • Melting I2t: 110
  • Manufacturer Package: Cartridge, non-standard (axial)
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
