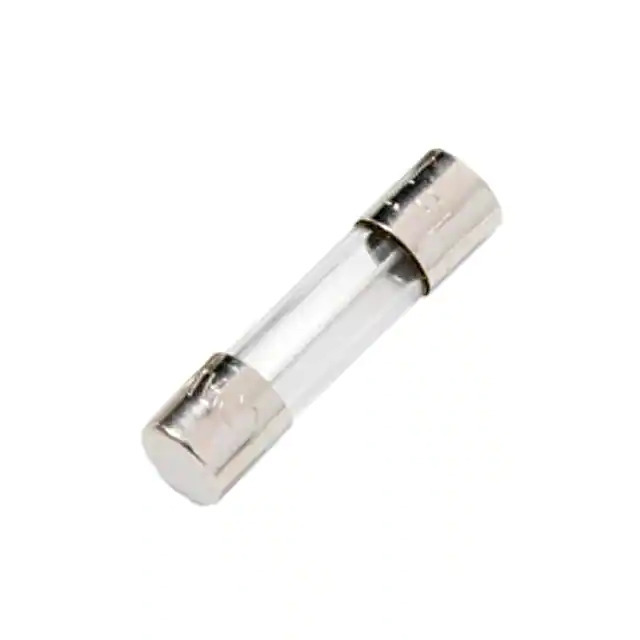

0235001.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0235001.HXP

Part No 0235001.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 1A 250VAC 5X20MM / 1 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Datasheet
0235001.HXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 235
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I²t 0.4675
Approval Agency CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.153 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361392-0235001.HXP
Ultra Librarian 3D Model Ultra Librarian 0235001.HXP CAD Model

Description

The 235 series fuse by Littelfuse Inc. is a reliable and high-quality circuit protection solution.

  • Current Rating: 1 Amp
  • Voltage Rating: 250V
  • Blow Characteristic: Fast Blow
  • Breaking Capacity: 100A
  • Package: 5mm x 20mm
  • Mounting Type: Holder
  • Temperature Range: -55°C to 125°C
  • Approvals: CE, CSA, KC, PSE, and UL
  • Size: 0.205" diameter x 0.787" L (5.20mm x 20.00mm)
