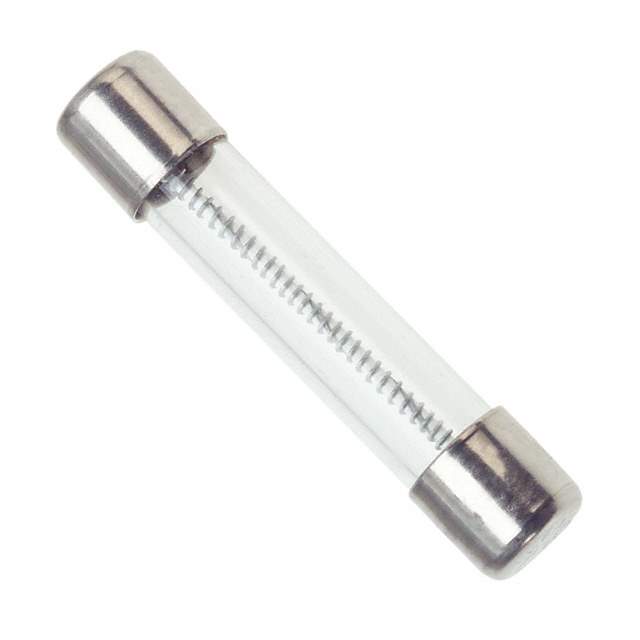

03136.25MXP Real Image
Same model may have multiple batches, images only for reference.

03136.25MXP

Part No 03136.25MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 6.25A 250VAC 3AB 3AG  /  6.25 A 250 V AC DC Fuse Cartridge, Glass Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 313
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 6.25 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 200A
Melting I2t 242
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0154 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names -03136.25MXP,F4820,03136.25MXP-ND,0313625MXP
Standard Package 1,000
Win Source Part Number 991785-03136.25MXP
Ultra Librarian 3D Model Ultra Librarian 03136.25MXP CAD Model

Description

The 991785-03136.25MXP is a cartridge glass fuse from Littelfuse Inc. that belongs to the 313 series.

  • Manufacturer: Littelfuse Inc.
  • Series: 313
  • Response Time: Slow Blow
  • Voltage Rating: 250 V AC
  • Breaking Capacity @ Rated Voltage: 200A
  • DC Cold Resistance: 0.0154 Ohms
  • Melting I2t: 242
  • Standard Package: 1,000
  • Mounting: Holder
  • Package/Case: 3AB, 3AG, 1/4" x 1-1/4"
  • Operating Temperature Range: -55°C to 125°C
  • Dimension: 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
  • Approvals: CE, CSA, K-MARK, PSE, and UL
