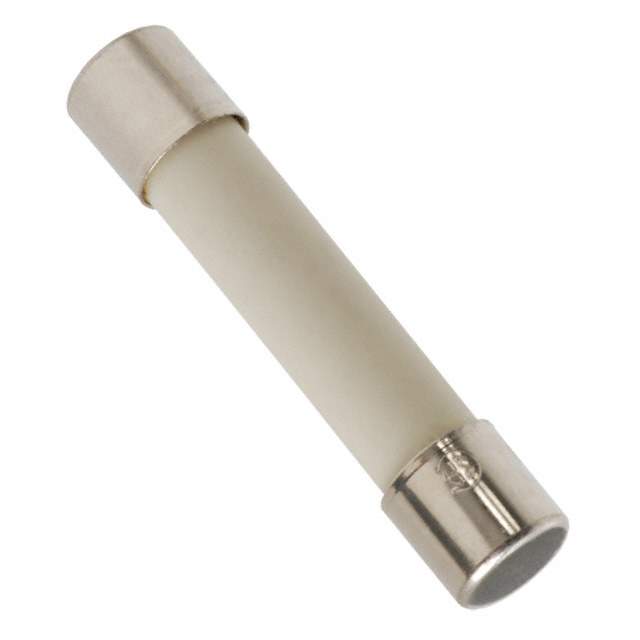

Part No 0314020.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 20A 250VAC 125VDC 3AB / 314/324 Series Lead-free 3AB, Fast-acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Style Holder
Breaking Capacity at Rated Voltage 200A AC, 10kA DC
Melting I2t 631
Approvals CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.00355 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802697-0314020.MXP
Ultra Librarian 3D Model Ultra Librarian 0314020.MXP CAD Model

Description

The Littelfuse Inc. 802697-0314020.MXP is a ceramic cartridge fuse from Littelfuse Inc.

  • Voltage Rating: 250V AC, 125V DC
  • Response Time: Fast Blow
  • Breaking Capacity: 200A AC, 10kA DC @ Rated Voltage
  • DC Cold Resistance: 0.00355 Ohms
  • Melting I2t: 631
  • Approvals: CE, CSA, PSE, UL
  • Mounting Type: Bulk
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1,000
  • MSL: 1 (Unlimited)
