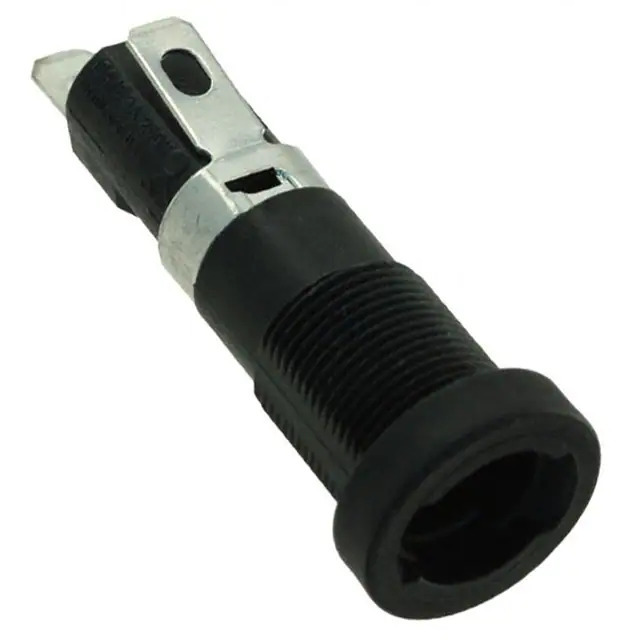

03453LF2HX040 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

03453LF2HX040

Part No 03453LF2HX040
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT / Fuse Holder 20 A 250V 1 Circuit Cartridge Panel Mount
Datasheet
03453LF2HX040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 345
Package Bulk
Product Status Active
Mounting Type Panel Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Orientation -
Termination Style Quick Connect - 0.187" (4.7mm)
Contact Material Copper Alloy
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361498-03453LF2HX040
Ultra Librarian 3D Model Ultra Librarian 03453LF2HX040 CAD Model

Description

The 1361498-03453LF2HX040 is a panel mount fuseholder from the 345 series manufactured by Littelfuse Inc.

  • Current Rating: 20A
  • Voltage Rating: 250V
  • Fuse Size: 3AG and 1/4" x 1-1/4" (SFE-20)
  • Termination Style: Quick connect termination style with a 0.187" (4.7mm) width
  • Finish: Tin finish for corrosion resistance
  • Material: Copper alloy for optimal conductivity
  • Mounting: Panel mountable
