Same model may have multiple batches, images only for reference.

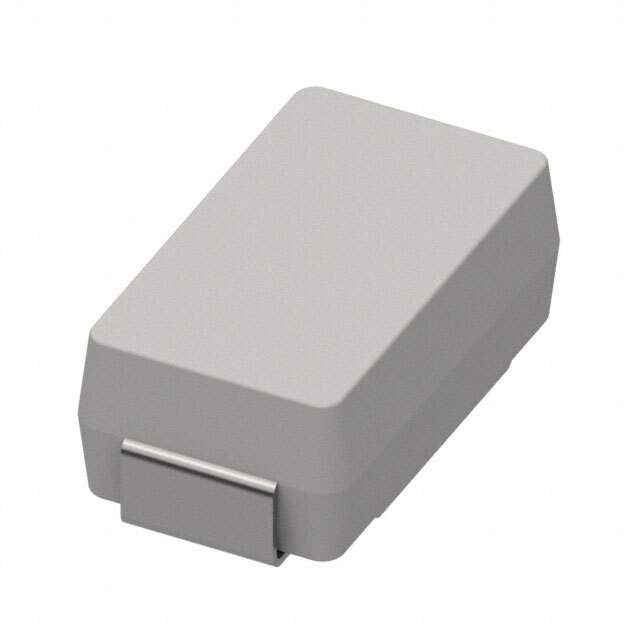

0460004.ER Real Image
Same model may have multiple batches, images only for reference.

0460004.ER

Part No 0460004.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 4A 125VAC/VDC 2SMD  /  4 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Datasheet
0460004.ER Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series PICO® 460
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 50A
Melting I2t 35
Approval Agency CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm)
DC Cold Resistance 0.0194 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names R460004ER,-0460004.ER,R460004.ER
Standard Package 2,500
Win Source Part Number 1147656-0460004.ER
Ultra Librarian 3D Model Ultra Librarian 0460004.ER CAD Model

Description

The PICO® 460 series fuse is a board mountable component designed for circuit protection.

  • Manufacturer: Littelfuse Inc.
  • Voltage Rating: 125 V AC and 125 V DC
  • Response Time: Slow blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 35
  • DC Cold Resistance: 0.0194 Ohms
  • Current Rating: 4 A
  • Mounting Type: SMD (SMT)
  • Package/Case: 2-SMD, J-Lead
  • Dimensions: 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm)
  • Standard Package: 2,500
  • Packaging: Tape and reel
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Approvals: CSA, PSE, and UL
