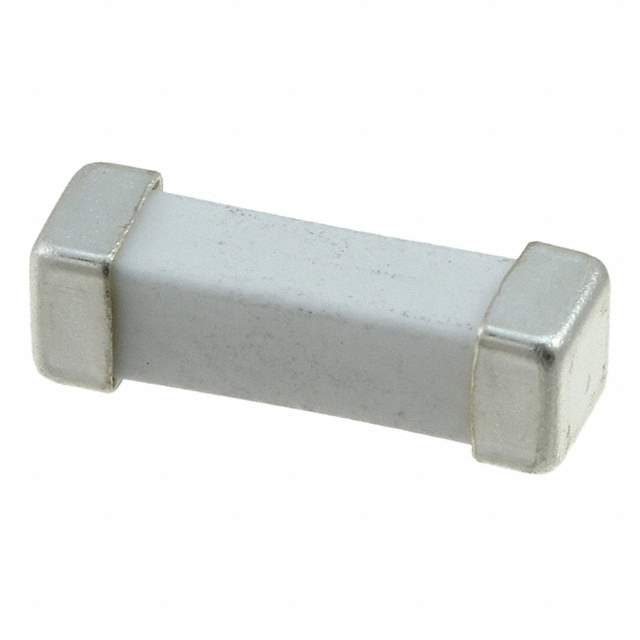

0463020.ER Real Image
Same model may have multiple batches, images only for reference.

0463020.ER

Part No 0463020.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE 250V V FA NANO2 20A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 20A
Voltage Rating - AC 250V
Voltage Rating - DC 100V
Response Time Fast Blow
Manufacturer Package 2-SMD, Square End Block
Mounting Style SMD
Breaking Capacity at Rated Voltage 100A AC, 50A DC
Melting I2t 433
Approvals cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
DC Cold Resistance 0.0027 Ohms
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805702-0463020.ER
Ultra Librarian 3D Model Ultra Librarian 0463020.ER CAD Model

Description

The Littelfuse Inc. 805702-0463020.ER, from Littelfuse Inc., is a fast-acting board mount fuse that is designed to protect electronic components from overcurrent.

  • Voltage Rating AC: 250V
  • Voltage Rating DC: 100V
  • Current Rating: 20A
  • Breaking Capacity AC: 100A
  • Breaking Capacity DC: 50A
  • DC Cold Resistance: 0.0027 Ohms
  • Dimension: 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
  • Package / Case: 2-SMD, Square End Block
  • Approvals: cURus
  • Melting I2t: 433
  • Operating Temperature: -55°C to 125°C
