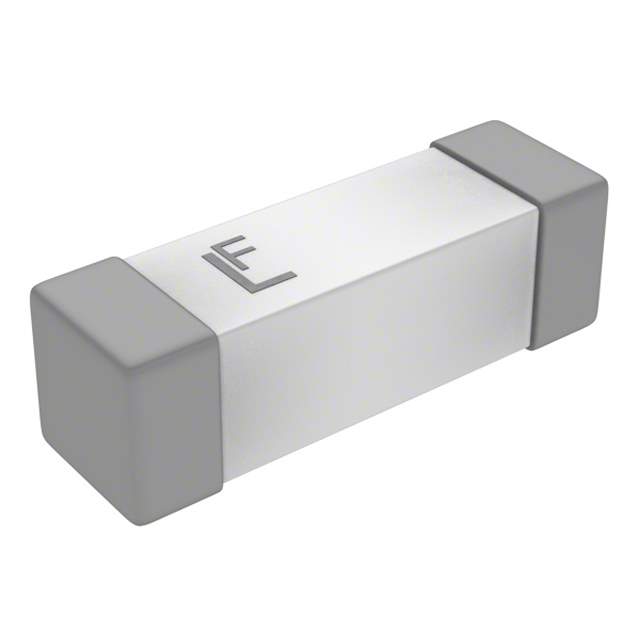

Same model may have multiple batches, images only for reference.

04653.15DR

Name: 04653.15DR
Brand: Littelfuse Inc.
SKU: 967061
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	04653.15DR
Manufacturer	Littelfuse Inc.
Catalog	Fuses
Description	FUSE BOARD MNT 3.15A 250VAC 2SMD / 3.15 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Fuses
Mfr	Littelfuse Inc.
Series	NANO²® 465
Package	Tape & Reel
Mounting	SMD (SMT)
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	3.15 A
Voltage Rating - AC	250 V
Response Time	Slow Blow
Package / Case	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage	100A
Melting I2t	31.7
Approval Agency	PSE, UMF
Temperature Range - Operating	-55°C ~ 125°C
Dimension	0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm)
DC Cold Resistance	0.021 Ohms
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.10.0040
Other Names	04653.15DR-ND,04653.15,F3670DKR,0465315DR,F3670CT,F3670TR
Standard Package	1,500
Win Source Part Number	967061-04653.15DR
Ultra Librarian 3D Model	Ultra Librarian 04653.15DR CAD Model

Alternative Products

Description

The NANO²® 465 series slow blow board mount fuse is an excellent choice for circuit protection in electronic devices.

Voltage Rating: 250V AC
Breaking Capacity @ Rated Voltage: 100A
DC Cold Resistance: 0.021 Ohms
Melting I2t: 31.7
Package: Tape and Reel
Standard Package Quantity: 1,500
Temperature Range: -55°C to 125°C
Mounting: SMD (SMT)
Package/Case Size: 2-SMD, square end block
Dimensions: 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm)
MSL Level: 1 (unlimited)
Alternative Parts (Cross-Reference): UMTS 3.15, 38314000000, 36914000000, 0001.2510, 3403.0280.23, 3403.0280.11, RST 4
Approval Agencies: PSE and UMF
