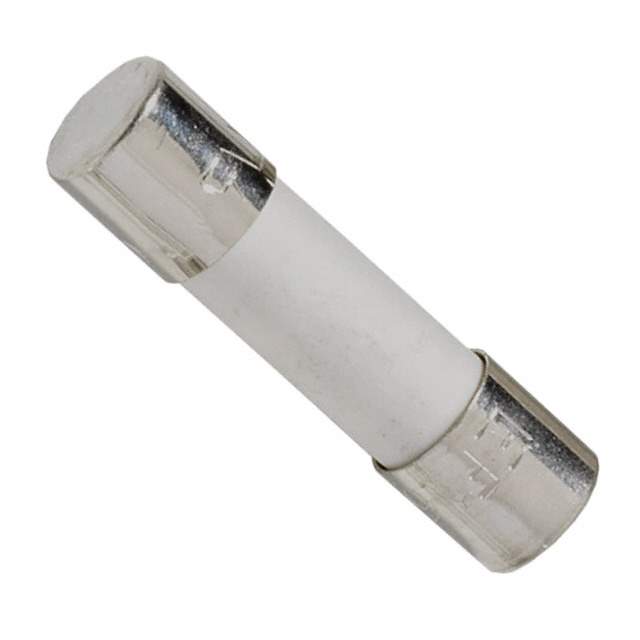

0477002.MXP Real Image
Same model may have multiple batches, images only for reference.

0477002.MXP

Part No 0477002.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 477 Series
Datasheet
0477002.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series 477
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 2A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow
Package 5mm x 20mm
Mounting Holder
Breaking Capacity @ Rated Voltage 100A AC, 1.5kA DC
Melting I2t 9.12
Approvals cULus, PSE, SEMKO
Operating Temperature Range -55°C ~ 125°C
Size 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Resistance 0.0552 Ohm
Win Source Part Number 1120680-0477002.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Family Name 477
Introduction Date January 14, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian 0477002.MXP CAD Model

Description

The Littelfuse Inc. 1120680-0477002.MXP is a ceramic cartridge fuse with a 2A current rating and slow response time.

  • Voltage Rating: 500V AC and 400V DC.
  • Breaking Capacity @ Rated Voltage: 100A AC and 1.5kA DC.
  • Approvals: cULus, PSE, and SEMKO approved.
  • Compliant with: Halogen-free regulations.
  • Series: 477 series.
  • Popularity Rating: Medium.
  • Supply and Demand Status: Limited.
