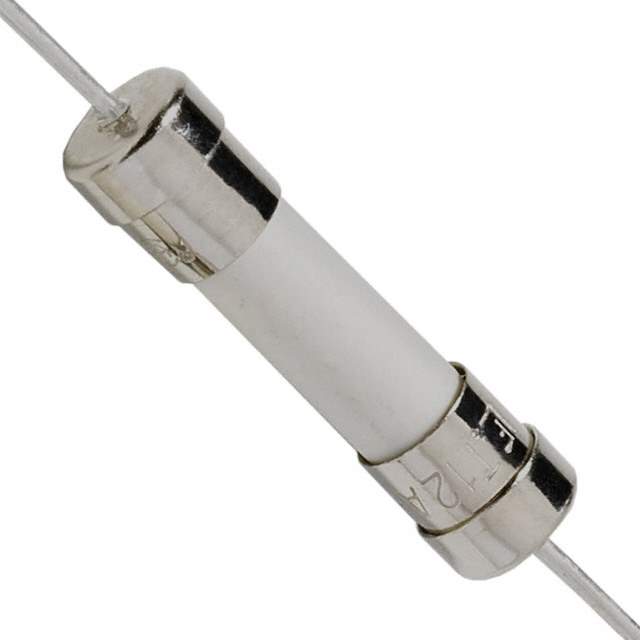

0477012.MXEP Real Image
Same model may have multiple batches, images only for reference.

0477012.MXEP

Part No 0477012.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 12A 500VAC 400VDC 5X20 / Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 477 Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 12A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A AC, 500A DC
Melting I2t 576
Approvals cULus, PSE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.00473 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808584-0477012.MXEP
Ultra Librarian 3D Model Ultra Librarian 0477012.MXEP CAD Model

Description

The Littelfuse Inc. 747082 is a slow blow, ceramic cartridge type fuse.

  • Voltage Rating: 500V AC, 400V DC
  • DC Cold Resistance: 0.00473 Ohms
  • Current Rating: 12A
  • Breaking Capacity @ Rated Voltage: 100A AC, 500A DC
  • Dimension: 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
  • Package: 5mm x 20mm (Axial)
  • Approvals: cULus, PSE
  • Melting I2t: 576
  • Supply and Demand: Balanced
