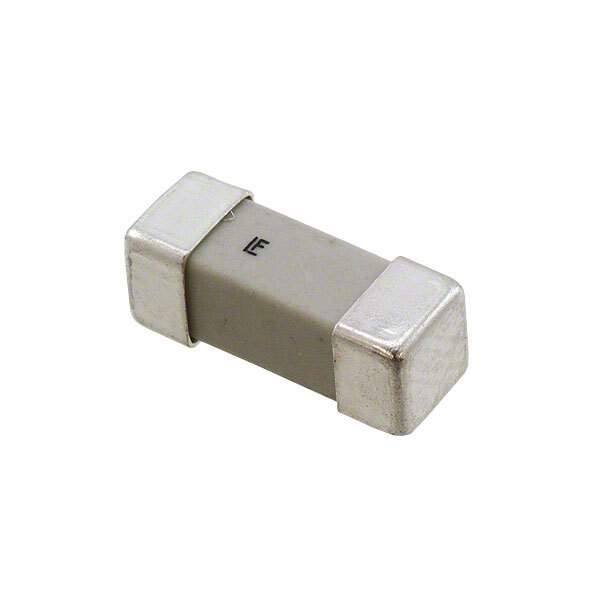

0485001.DR Real Image
Same model may have multiple batches, images only for reference.

0485001.DR

Part No 0485001.DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses NANO2® > 600VDC > Fast-Acting 485 Series | FUSE BOARD MOUNT 1A 600VDC 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1A
Voltage Rating - DC 600V
Response Time Fast Blow
Manufacturer Package 2-SMD, Square End Block
Mounting Style SMD
Breaking Capacity at Rated Voltage 100A
Melting I2t 0.304
Approvals CSA, UL
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm)
DC Cold Resistance 0.3044 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120683-0485001.DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0485001.DR CAD Model

Description

The 0485001.DR is a surface mount fuse from Littelfuse Inc.

  • Type: Surface Mount
  • Protection: Overcurrent conditions
  • Response Time: Fast blow
  • Breaking Capacity: High
  • Protection For: Sensitive electronic components
  • Package: 2-SMD, square end block
  • RoHS Compliant: Yes
  • Supply and Demand Status: Balanced
