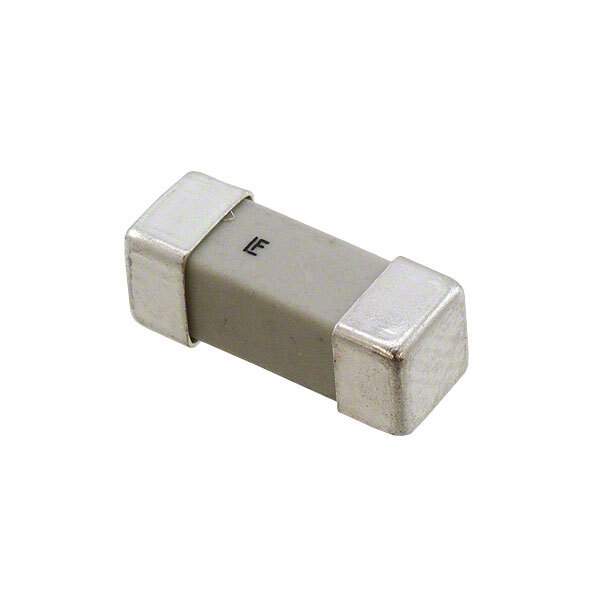

048502.5DR Real Image
Same model may have multiple batches, images only for reference.

048502.5DR

Part No 048502.5DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 2.5A 600VDC SMD
Datasheet
048502.5DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 17 Weeks
Features AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Manufacturer Littelfuse Inc.
Series 485
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 2-SMD, Square End Block
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number F5924CT, F5924TR, F5924DKR, 48502.5DR, 0485025DR, 48502.5, -048502.5DR
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904595-048502.5DR
Ultra Librarian 3D Model Ultra Librarian 048502.5DR CAD Model

Description

The 904595-048502.5DR is an AC DC fuse board mount manufactured by Littelfuse Inc.

  • Series: 485 series
  • Operating Temperature Range: -55°C ~ 125°C
  • Package: reel - TR
  • Mounting: surface mount with 2-SMD, square end block
  • Category: circuit protection
  • Popularity: high
