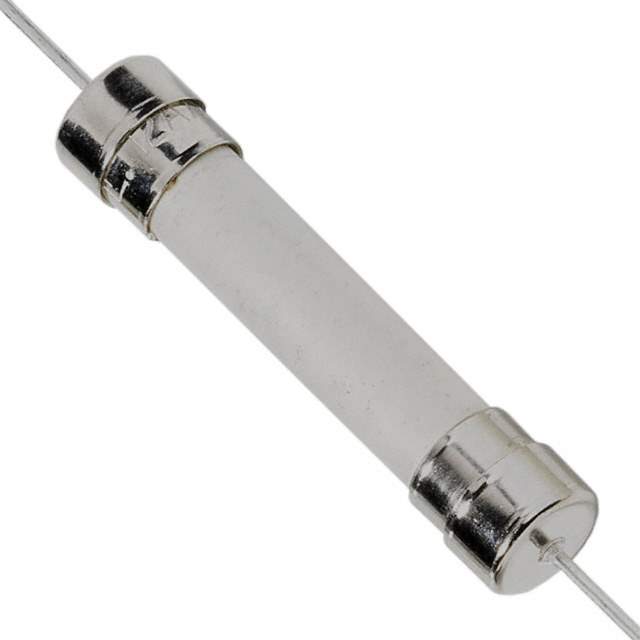

0505025.MXEP Real Image
Same model may have multiple batches, images only for reference.

0505025.MXEP

Part No 0505025.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Axial Lead & Cartridge Fuses | FUSE CERAMIC 25A 500VAC/VDC 3AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 25A
Voltage Rating - AC 500V
Voltage Rating - DC 500V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 30kA AC, 20kA DC
Melting I2t 145
Approvals CE, cULus
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0048 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 758947-0505025.MXEP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0505025.MXEP CAD Model

Description

The Littelfuse Inc. 758947-0505025.MXEP is a through-hole ceramic cartridge fuse with a voltage rating of 500V AC/DC.

  • Voltage Rating: 500V AC/DC
  • Current Rating: 25A
  • Breaking Capacity (AC): 30kA @ rated voltage
  • Breaking Capacity (DC): 20kA @ rated voltage
  • Response Time: Fast Blow
  • Melting I2t: 145
  • Approvals: CE, cULus
  • DC Cold Resistance: 0.0048 Ohms
  • Popularity: medium
