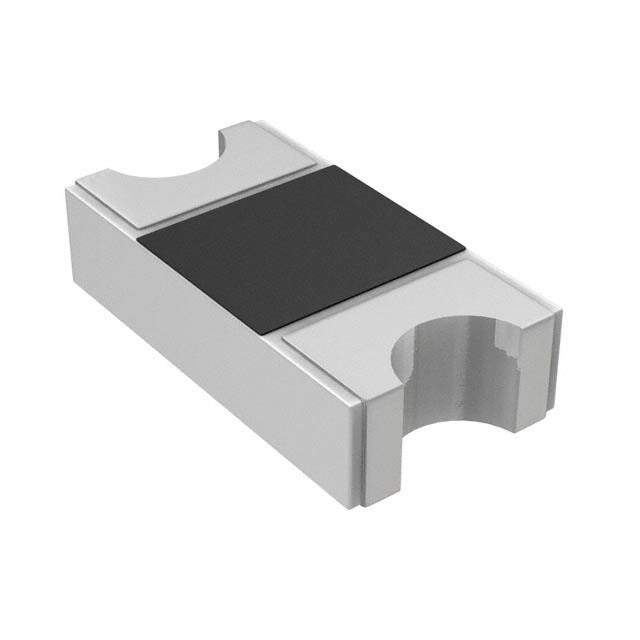

Same model may have multiple batches, images only for reference.

0603L075SLYR

Name: 0603L075SLYR
Brand: Littelfuse Inc.
SKU: 803179
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0603L075SLYR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 6V 750MA 0603
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Littelfuse Inc.
Packaging	Reel
Type	Polymeric
Voltage - Max	6V
Current - Max	50A
Current - Hold (Ih) (Maximum)	750mA
Current - Trip (It)	1.5A
Time to Trip	200ms
Resistance - Initial (Ri) (Min)	20 mOhms
Resistance - Post Trip (R1) (Maximum)	165 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Style	SMD
Manufacturer Package	0603, Concave
Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Maximum)	0.030" (0.75mm)
Approvals	cURus, TUV
Manufacturer Pack Quantity	4,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803179-0603L075SLYR
Ultra Librarian 3D Model	Ultra Librarian 0603L075SLYR CAD Model

Alternative Products

Description

This Littelfuse Inc. SMD polymeric component is a circuit protection device with a maximum voltage of 6V and a maximum current of 50A.

Maximum Voltage: 6V
Maximum Current: 50A
Trip Current: 1.5A
Time to Trip: 200ms
Packaging: Reel
Mounting Style: SMD
Operating Temperature: -40°C ~ 85°C
Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
Initial Resistance (Ri) (min): 20 mOhms
Current-Hold (Ih) (maximum): 750mA
Thickness (maximum): 0.030" (0.75mm)
Post Trip Resistance (R1) (maximum): 165 mOhms
Supply and Demand Status: Balance
Manufacturer Pack Quantity: 4,000
MSL Level: 1 (unlimited)
