Same model may have multiple batches, images only for reference.

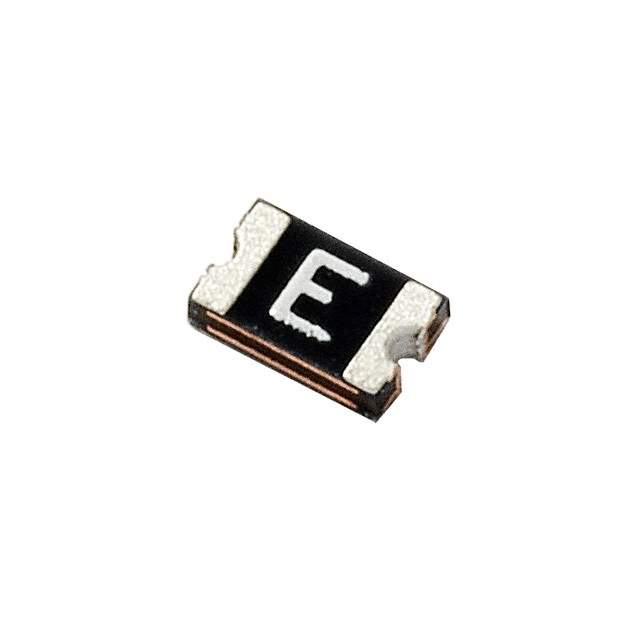

0805L260SLTHYR Real Image
Same model may have multiple batches, images only for reference.

0805L260SLTHYR

Part No 0805L260SLTHYR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 2.6A 0805 / Polymeric PTC Resettable Fuse 6V 2.6 A Ih Surface Mount 0805 (2012 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, LoRho
Package Tape & Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50 A
Current - Hold (Ih) (Max) 2.6 A
Current - Trip (It) 5 A
Time to Trip 4 s
Resistance - Initial (Ri) (Min) 3 mOhms
Resistance - Post Trip (R1) (Max) 35 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), Concave
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names F5781CT,F5781TR,F5781DKR,0805L260SL
Standard Package 4,000
Win Source Part Number 1133523-0805L260SLTHYR
Ultra Librarian 3D Model Ultra Librarian 0805L260SLTHYR CAD Model

Description

The 1133523-0805L260SLTHYR is a PTC resettable fuse that belongs to the POLY-FUSE®, LoRho series.

  • Series: POLY-FUSE®, LoRho
  • Type: polymeric
  • Voltage (Max): 6V
  • Current (Max): 50A
  • Current Hold: 2.6A
  • Current Trip: 5A
  • Time to Trip: 4s
  • Resistance Initial (Ri) (Min): 3 mOhms
  • Package: tape and reel
  • Standard Package: 4,000
  • Mounting: SMD (SMT) technology
  • Thickness: 0.030" (0.75mm)
  • Operating Temperature: -40°C to 85°C
  • Approvals: cURus and TUV
