Same model may have multiple batches, images only for reference.

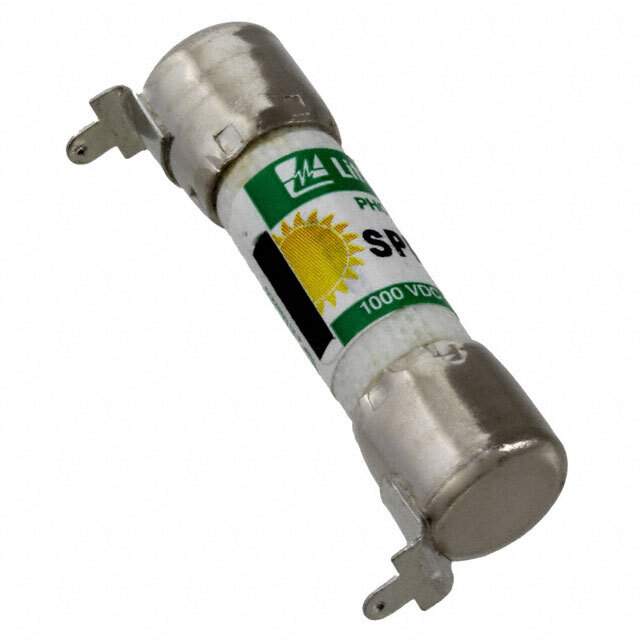

0SPF030.HXR Real Image
Same model may have multiple batches, images only for reference.

0SPF030.HXR

Part No 0SPF030.HXR
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 30A 1KVDC 5AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge
Current Rating (Amps) 30A
Voltage Rating - DC 1kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Approvals CE, CSA, UL
Breaking Capacity at Rated Voltage 20kA
Mounting Style Through Hole
Manufacturer Package 5AG, 10mm x 38.1mm
Dimension 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
DC Cold Resistance 0.00284 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813436-0SPF030.HXR
Ultra Librarian 3D Model Ultra Librarian 0SPF030.HXR CAD Model

Description

The 813436-0SPF030.HXR is a cartridge type fuse manufactured by Littelfuse Inc. It has a voltage rating of 1kV and a current rating of 30A. The component has a fast blow response time and is approved by CE, CSA, and UL.

  • Voltage Rating: 1kV
  • Current Rating: 30A
  • Response Time: Fast Blow
  • Approvals: CE, CSA, UL
  • Application: Solar (Photovoltaic)
