Same model may have multiple batches, images only for reference.

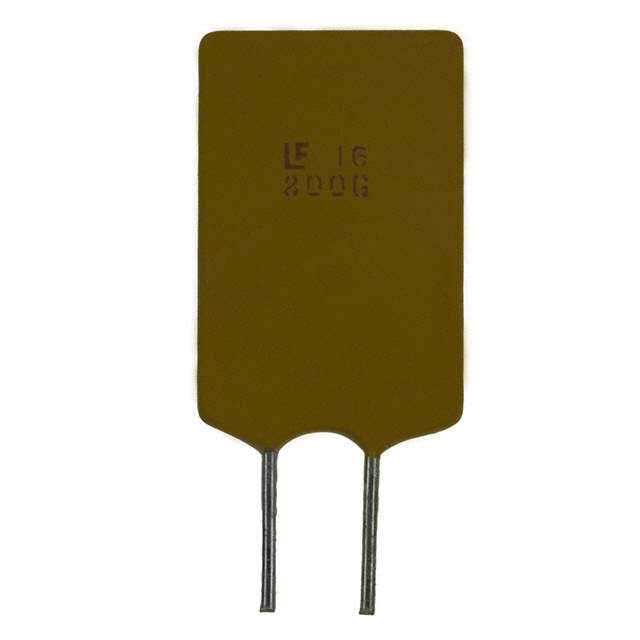

16R800GMR Real Image
Same model may have multiple batches, images only for reference.

16R800GMR

Part No 16R800GMR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 8A RADIAL / POLYFUSE® Resettable PTCs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 8A
Current - Trip (It) 13.6A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 5.6 mOhms
Resistance - Post Trip (R1) (Maximum) 17.5 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Maximum) 0.823" (20.90mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803592-16R800GMR
Ultra Librarian 3D Model Ultra Librarian 16R800GMR CAD Model

Description

The Littelfuse Inc. 16R800GMR is a polymeric fuse that comes in a radial, disc package.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip: 13.6A
  • Time to Trip: 5s
  • Initial Resistance (Ri): 5.6 mOhms
  • Post-Trip Resistance (R1): 17.5 mOhms
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.500" L x 0.118" W (12.70mm x 3.00mm)
  • Supply and Demand: Balanced
