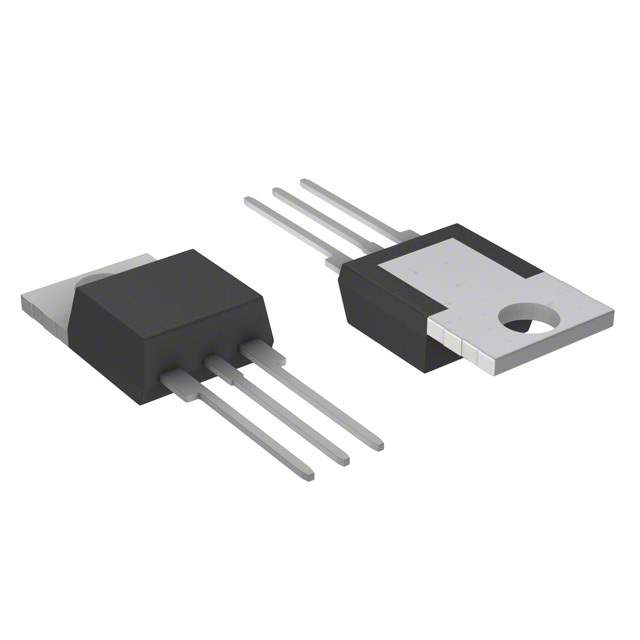

D8015L

Name: D8015L
Brand: Littelfuse Inc.
SKU: 583566
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	D8015L
Manufacturer	Littelfuse Inc.
Catalog	Diodes, Rectifiers - Single
Description	Teccor manufactures 15 A rms to 25 A rms rectifiers with voltages rated from 200V to 1000V
Datasheet	D8015L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Diode Type	Standard
Voltage - DC Reverse (Vr) (Maximum)	800V
Current - Average Rectified (Io)	9.5A
Voltage - Forward (Vf) (Maximum) @ If	1.6V @ 9.5A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4μs
Current - Reverse Leakage @ Vr	20μA @ 800V
Mounting Style	Through Hole
Package	TO-220-3 Isolated Tab
Manufacturer Package	TO-220 Isolated Tab
Operating Temperature - Junction	-40°C ~ 125°C
Win Source Part Number	1166254-D8015L
Manufacturer Homepage	www.littelfuse.com
Popularity	Medium
Supply and Demand Status	Balance
Family Name	D8015L
Introduction Date	February 23, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian D8015L CAD Model

Alternative Products

Description

The Littelfuse Inc. D8015L diode is a standard recovery diode with a TO-220-3 isolated tab package and a through-hole mounting style.

Current Average Rectified: 9.5A
Reverse Recovery Time: 4μs
Voltage Forward (Vf) (maximum) @ If: 1.6V @ 9.5A
Voltage DC Reverse (Vr) (maximum): 800V
Junction Operating Temperature Range: -40°C to 125°C
Compliance: Halogen-free standards
Supply and Demand Status: Balanced
