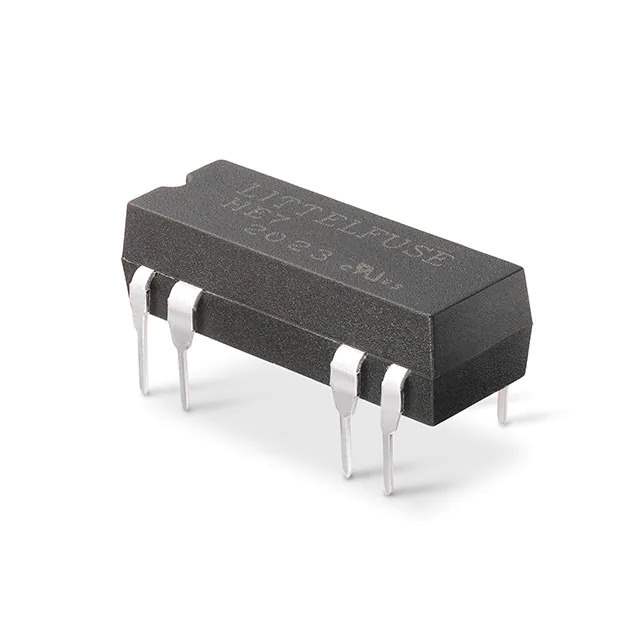

HE721C0510 Real Image
Same model may have multiple batches, images only for reference.

HE721C0510

Part No HE721C0510
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPDT 250MA 5V
Datasheet
HE721C0510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE700
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 250 mA
Switching Voltage 175VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 3 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 200 Ohms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 873488-HE721C0510
Ultra Librarian 3D Model Ultra Librarian HE721C0510 CAD Model

Description

The 873488-HE721C0510 is a SPDT (1 Form C) reed relay from the HE700 series.

  • Termination Style: PC pin
  • Features: Diode
  • Coil Voltage: 5VDC
  • Coil Resistance: 200 Ohms
  • Coil Current: 25 mA
  • Operate Time: 3 ms
  • Release Time: 3 ms
  • Contact Rating: 250 mA
  • Switching Voltage: 175VDC maximum
  • Mounting: Through-hole
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
