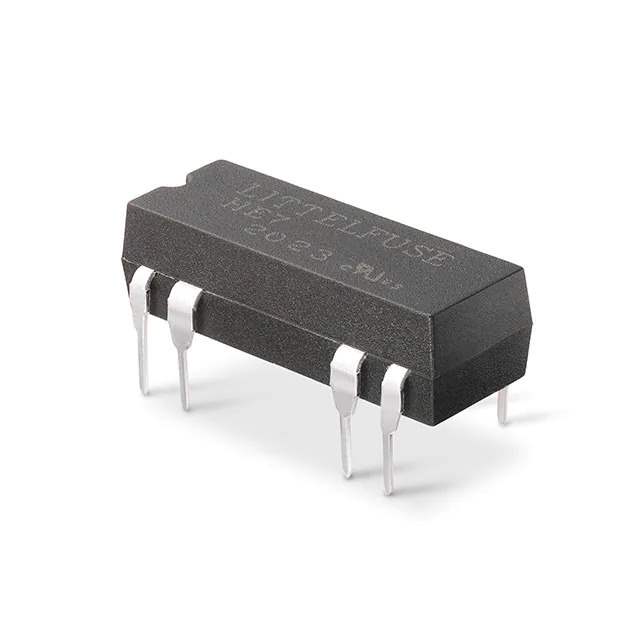

HE722A1210 Real Image
Same model may have multiple batches, images only for reference.

HE722A1210

Part No HE722A1210
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED DPST 500MA 12V
Datasheet
HE722A1210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE700
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VDC - Max
Coil Current 24 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 8 VDC
Must Release Voltage 1 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 500 Ohms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 848358-HE722A1210
Ultra Librarian 3D Model Ultra Librarian HE722A1210 CAD Model

Description

The HE722A1210 is a DPST-NO (2 Form A) Reed Relay from the HE700 series by Littelfuse Inc.

  • Diode: Yes
  • Coil Resistance: 500 Ohms
  • Coil Current: 24 mA
  • Operate Time: 1 ms
  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 500 mA
  • Switching Voltage: 200VDC (max)
  • Release Time: 1 ms
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 25 pcs
