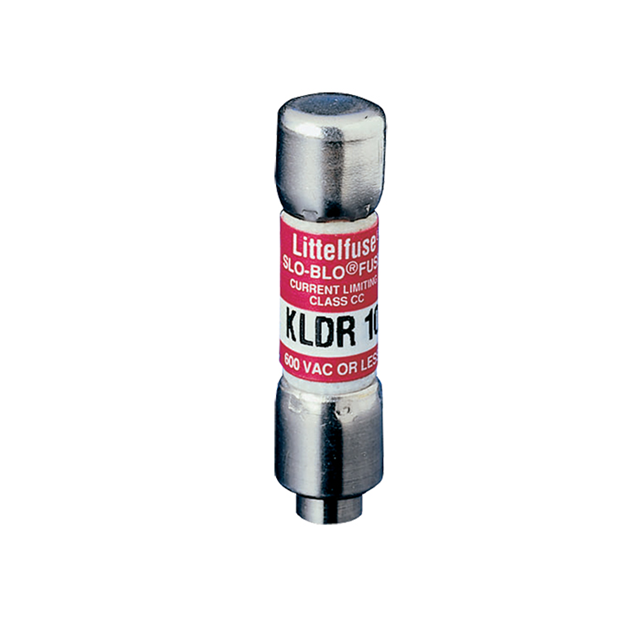

KLDR6.25TXP Real Image
Same model may have multiple batches, images only for reference.

KLDR6.25TXP

Part No KLDR6.25TXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 6.25A 600VAC/300VDC / 600 Vac
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge
Current Rating (Amps) 6.25A
Voltage Rating - AC 600V
Voltage Rating - DC 300V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approvals CE, CSA, UL
Breaking Capacity at Rated Voltage 200kA AC, 20kA DC
Mounting Style Holder
Manufacturer Package 5AG, 10mm x 38.1mm
Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813392-KLDR6.25TXP
Ultra Librarian 3D Model Ultra Librarian KLDR6.25TXP CAD Model

Description

The Littelfuse KLDR6.25TXP is a slow-blow, cartridge-type fuse with a current rating of 6.25 A and a voltage rating of 600 V AC and 300 V DC. It is designed to protect transformers from overcurrents and short circuits. This fuse has a CC class and is approved by CE, CSA, and UL.

  • Current Rating: 6.25 A
  • Voltage Rating: 600 V AC and 300 V DC
  • Fuse Class: CC
  • Approvals: CE, CSA, UL
  • Dimensions: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
  • Mounting: Holder
  • Packaging: Bulk
  • Package Type: 5AG, 10mm x 38.1mm
