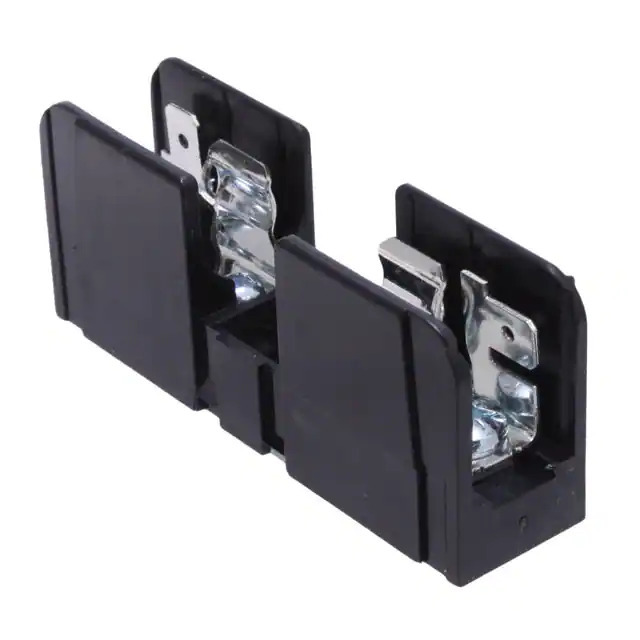

L60030M1SQ Littelfuse Inc.
Same model may have multiple batches, images only for reference.

L60030M1SQ

Part No L60030M1SQ
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOCK CART 600V 30A CHASSIS / Fuse Block 30 A 600V 1 Circuit Cartridge Chassis Mount
Datasheet
L60030M1SQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series L600
Package Box
Product Status Active
Mounting Type Chassis Mount
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 600V
Orientation -
Termination Style Screw Terminal, Quick Connect
Contact Material Copper Alloy
Contact Finish Tin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361524-L60030M1SQ
Ultra Librarian 3D Model Ultra Librarian L60030M1SQ CAD Model

Description

The L600 series fuseholder from Littelfuse Inc. is a chassis mount fuseholder designed for circuit protection.

  • Fuse Compatibility: 5AG and 13/32" x 1-1/2" (Midget) fuses
  • Current Rating: 30A
  • Voltage Rating: 600V
  • Termination Style: Screw Terminal and Quick Connect
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Mounting: Chassis Mount
  • Package: Box
  • Product Status: Active
  • REACH Compliance: Unaffected
