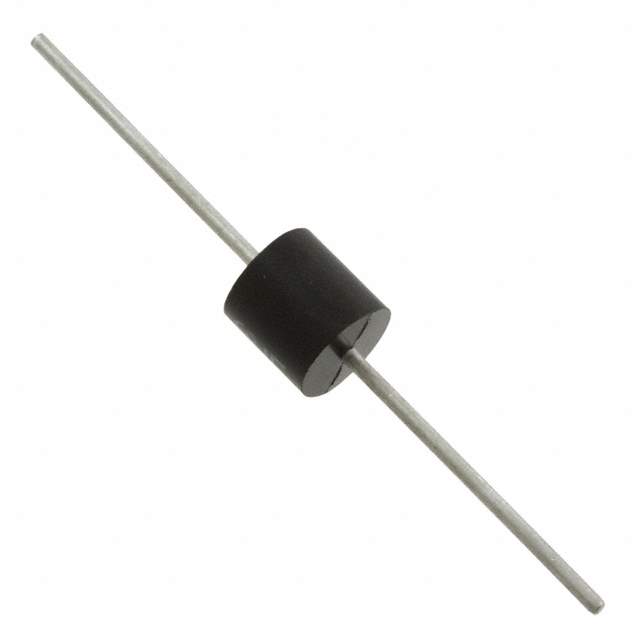

30KPA48A-HRA Real Image
Same model may have multiple batches, images only for reference.

30KPA48A-HRA

Part No 30KPA48A-HRA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
30KPA48A-HRA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series 30KPA-HRA
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 48V
Voltage - Breakdown (Min) 53.6V
Voltage - Clamping (Max) @ Ipp 81.6V
Current - Peak Pulse (10/1000µs) 371.3A
Power - Peak Pulse 30000W (30kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TA)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Other Names -30KPA48A-HRA
Standard Package 800
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300931-30KPA48A-HRA
Ultra Librarian 3D Model Ultra Librarian 30KPA48A-HRA CAD Model

Description

The Littelfuse 30KPA48A-HRA is a unidirectional TVS diode with a P600 axial package.

  • Channel: Unidirectional
  • Package: P600 axial
  • Reverse Standoff Voltage: 48V
  • Breakdown Voltage: 53.6V
  • Clamping Voltage Maximum: 81.6V
  • Peak Pulse Power: 30kW
  • Application: General purpose applications
  • Temperature Range: -55°C to 175°C
  • Package: Tape and reel
  • Standard Package: 800
