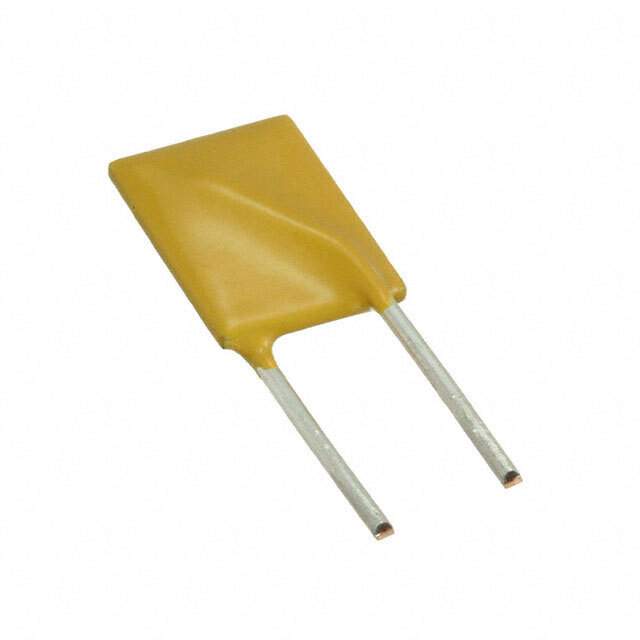

Same model may have multiple batches, images only for reference.

RKEF500-2

Name: RKEF500-2
Brand: Littelfuse Inc.
SKU: 1301594
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RKEF500-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RKEF
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Polymeric
Voltage - Max	60V
Current - Max	40 A
Current - Hold (Ih) (Max)	5 A
Current - Trip (It)	10 A
Time to Trip	28 s
Resistance - Initial (Ri) (Min)	12 mOhms
Resistance - Post Trip (R1) (Max)	50 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	1.140" L x 0.120" W (29.00mm x 3.00mm)
Height - Seated (Max)	1.142" (29.00mm)
Lead Spacing	0.400" (10.15mm)
Approval Agency	CSA, TUV, UL
Other Names	18-RKEF500-2DKRINACTIVE,F9706TR,RF4481-000,18-RKEF500-2TR,18-RKEF500-2CT,RKEF500-2TR,18-RKEF500-2DKR,RKEF500-2TR,18-RKEF500-2DKR,F9706TR
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301594-RKEF500-2
Ultra Librarian 3D Model	Ultra Librarian RKEF500-2 CAD Model

Alternative Products

Description

This electronic component is a circuit protection PTC resettable fuse manufactured by Littelfuse Inc.

Win Source Part Number: 1301594-RKEF500-2
Series: PolySwitch RKEF
Type: Polymeric
Maximum Voltage: 60V
Maximum Current: 40A
Mounting Type: Through Hole
Package: Radial, Disc
Supply and Demand Status: Unlimited
