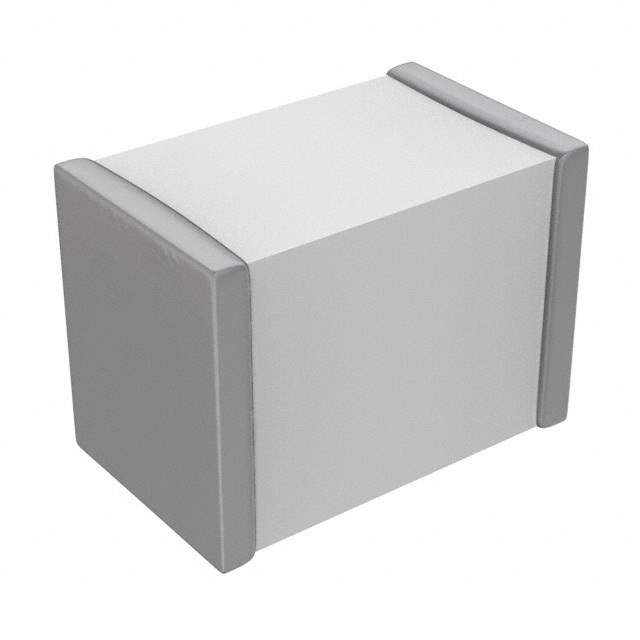

SG500 Real Image
Same model may have multiple batches, images only for reference.

SG500

Part No SG500
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series SG
Package Tape & Reel (TR),Cut Tape (CT)
Voltage - DC Spark Over (Nom) 500 V
Impulse Discharge Current (8/20µs) 1000A (1kA)
Number of Poles 2
Fail Short No
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Other Names 18-SG500TR,SG500,18-SG500CT,-SG500
Standard Package 2,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1301884-SG500
Ultra Librarian 3D Model Ultra Librarian SG500 CAD Model

Description

This electronic component falls under the category of circuit protection and is a gas discharge tube arrester (GDT).

  • Win Source Part Number: 1301884-SG500
  • Series: SG
  • Package: Tape and reel or cut tape
  • Standard package: 2,000
  • Voltage: 500 V
  • Poles: 2
  • Impulse discharge current: 1000A (1kA)
  • Mounting: SMD (SMT)
