Same model may have multiple batches, images only for reference.

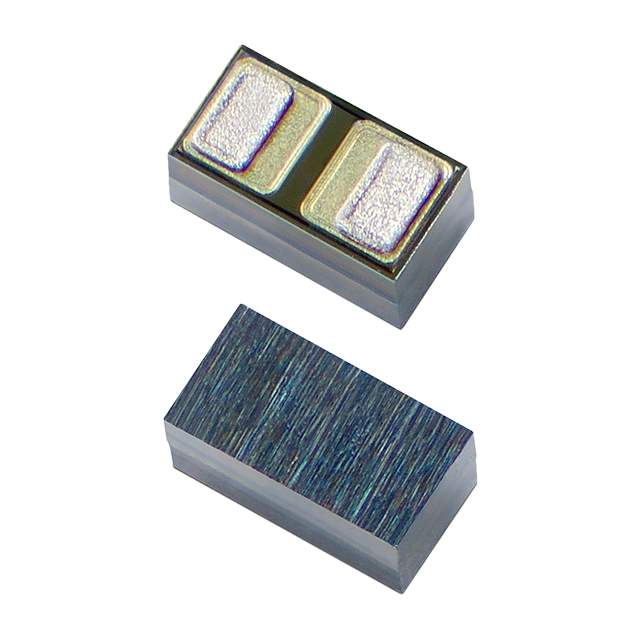

SP15-01WTG-C-HV Real Image
Same model may have multiple batches, images only for reference.

SP15-01WTG-C-HV

Part No SP15-01WTG-C-HV
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SPXX, SPA®
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 27V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 21pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 2-XFDFN, FCDFN
Supplier Device Package 2-FlipChip
Other Names F6962CT,F6962DKR,F6962TR,-SP15-01WTG-C-HV
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1299981-SP15-01WTG-C-HV
Ultra Librarian 3D Model Ultra Librarian SP15-01WTG-C-HV CAD Model

Description

The SP15-01WTG-C-HV SPXX, SPA Zener diode is designed for circuit protection applications. It is manufactured by Littelfuse Inc.

  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 16.7V
  • Application: General-Purpose
  • Package: 2-XFDFN, FCDFN
  • Mounting: SMD (SMT)
  • Channel: Bidirectional
  • Peak Pulse Power: 100W
  • Peak Pulse Current: 5A (8/20µs)
  • Voltage Clamping: 27V @ Ipp
  • Temperature Range: -40°C to 125°C (TJ)
  • Packaging: Tape and Reel
