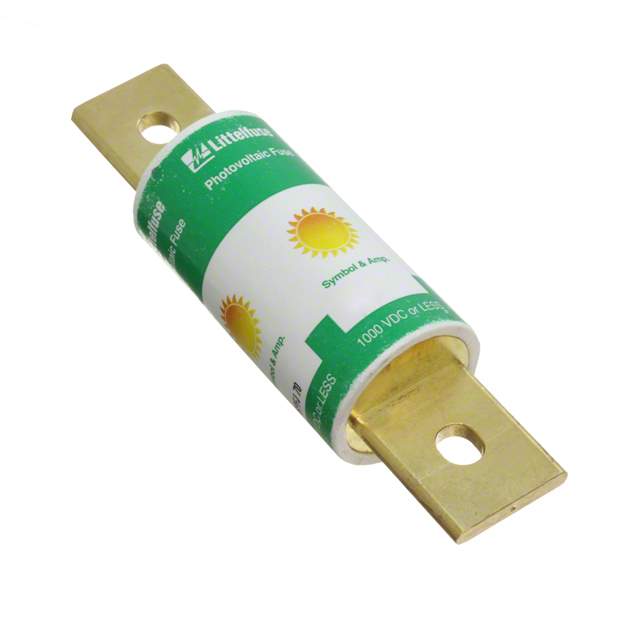

Same model may have multiple batches, images only for reference.

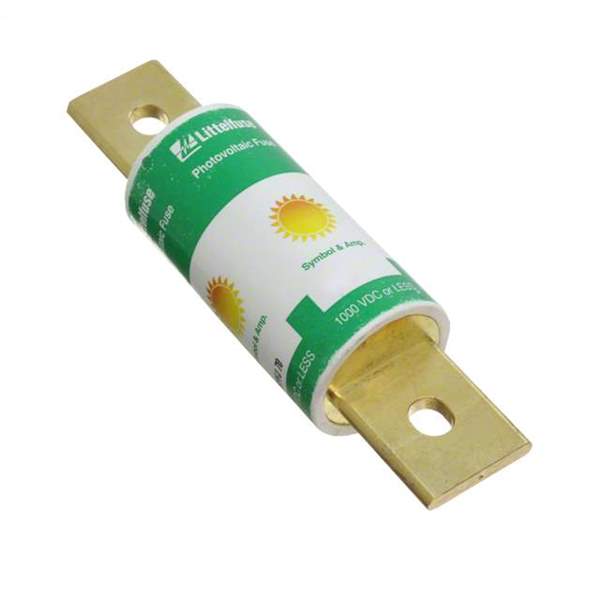

SPFJ070.X Real Image
Same model may have multiple batches, images only for reference.

SPFJ070.X

Part No SPFJ070.X
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPFJ070.X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPFJ
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 70A
Voltage Rating - DC 1 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Class J
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 20kA
Package / Case Cylindrical, Blade Terminal (Bolt)
Dimension 1.500" Dia x 3.012" L (38.10mm x 76.50mm)
DC Cold Resistance 1.93 mOhms
Other Names F10929,SPFJ070.X,-SPFJ070.X,SPFJ 70
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302320-SPFJ070.X
Ultra Librarian 3D Model Ultra Librarian SPFJ070.X CAD Model

Description

The POWR-GARD® SPFJ series cartridge fuse is ideal for use in solar (photovoltaic) applications.

  • Voltage Rating: 1 kV
  • Response Time: Fast blow
  • Breaking Capacity: 20kA @ rated voltage
  • DC Cold Resistance: 1.93 mOhms
  • Package/Case: Cylindrical blade terminal (bolt)
  • Dimensions: 1.500" Dia x 3.012" L (38.10mm x 76.50mm)
  • Class: J class
  • Current Rating: 70A
  • Mounting: Bolt mount
  • Approval Agency: CE and UL
  • ECCN: EAR99 compliant
