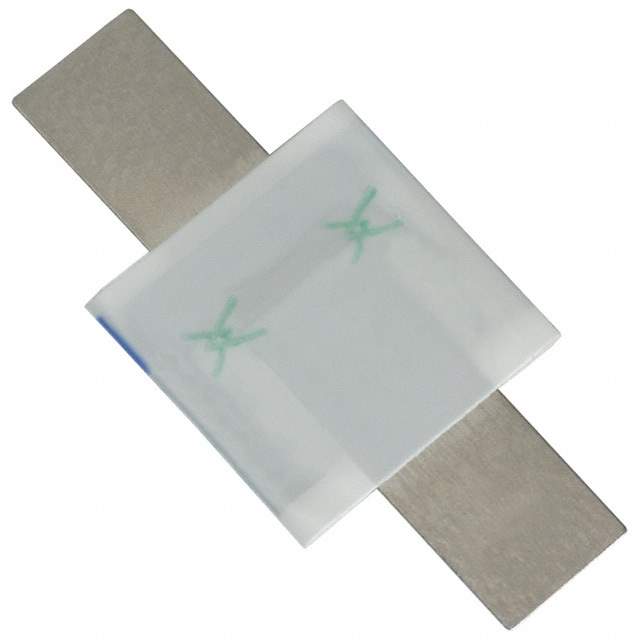

Same model may have multiple batches, images only for reference.

SRP420

Name: SRP420
Brand: Littelfuse Inc.
SKU: 1301588
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRP420
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Datasheet	SRP420 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, SRP
Package	Bulk
Product Status	Obsolete
Type	Polymeric
Voltage - Max	30V
Current - Max	100 A
Current - Hold (Ih) (Max)	4.2 A
Current - Trip (It)	7.6 A
Time to Trip	6 s
Resistance - Initial (Ri) (Min)	12 mOhms
Resistance - Post Trip (R1) (Max)	40 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	User Defined
Package / Case	Strap
Dimension	1.240" L x 0.522" W (31.50mm x 13.25mm)
Thickness (Max)	0.043" (1.10mm)
Approval Agency	CSA, TUV, UL
Standard Package	500
RoHS Status	RoHS non-compliant
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1301588-SRP420
Ultra Librarian 3D Model	Ultra Librarian SRP420 CAD Model

Alternative Products

Description

The Littelfuse Inc. SRP420 is an obsolete PTC resettable fuse that has a maximum voltage of 30V and a maximum current of 100 A.

Current Hold (Ih): 4.2 A
Current Trip (It): 7.6 A
Time to Trip: 6 s
Resistance - Initial (Ri): 12 mOhms
