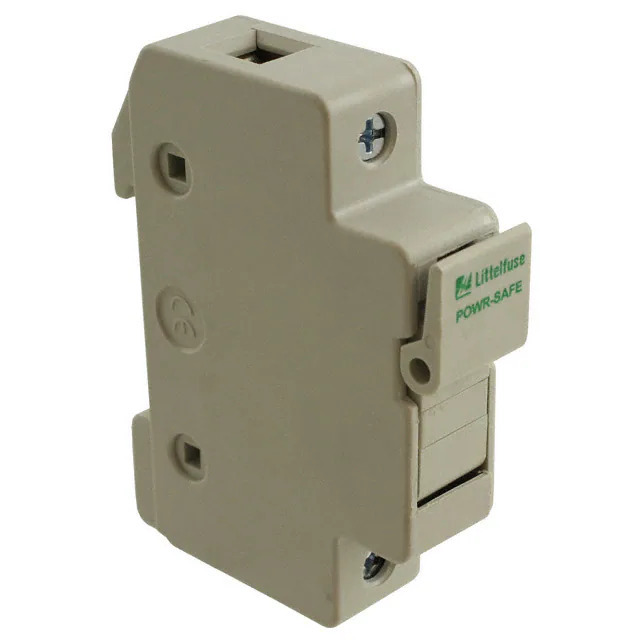

LPSC0001Z Littelfuse Inc.
Same model may have multiple batches, images only for reference.

LPSC0001Z

Part No LPSC0001Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 600V 30A DIN RAIL / Fuse Holder 30 A 600V 1 Circuit Cartridge DIN Rail
Datasheet
LPSC0001Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series POWR-GARD® LPSC
Package Box
Product Status Active
Mounting Type DIN Rail
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products Class CC Fuses, 13/32" x 1-1/2"
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Orientation -
Termination Style Screw Terminal, Pressure Plate
Contact Material -
Contact Finish -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1361514-LPSC0001Z
Ultra Librarian 3D Model Ultra Librarian LPSC0001Z CAD Model

Description

The 1361514-LPSC0001Z is a fuseholder from Littelfuse Inc.

  • Series: POWR-GARD® LPSC
  • Mounting Type: DIN Rail
  • Fuse Size Compatibility: Class CC, 13/32" x 1-1/2"
  • Current Rating: 30 A
  • Voltage Rating: 600V
  • Termination Style: Screw Terminal and Pressure Plate
  • Application: Industrial
  • Package: Box
  • REACH Compliance: Unaffected
  • ECCN: EAR99
