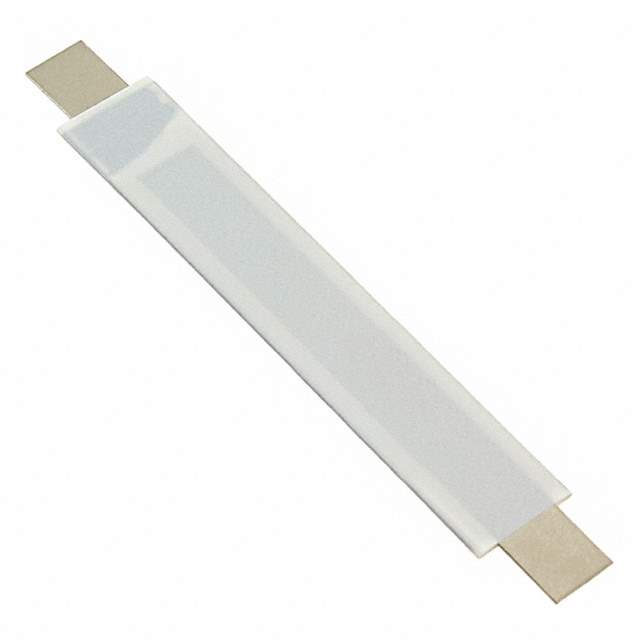

LR4-1300F Real Image
Same model may have multiple batches, images only for reference.

LR4-1300F

Part No LR4-1300F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 13A STRAP / PTC Resettable Fuse 13A(hold) 21.2A(trip) 20VDC 100A 4.5W 10s 0.0035Ohm SMD Solder Pad 50 X 10 X 1.3mm
Datasheet
LR4-1300F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LR4
Packaging Bulk
Type Polymeric
Voltage - Max 20V
Current - Max 100A
Current - Hold (Ih) (Maximum) 13A
Current - Trip (It) 21.2A
Time to Trip 10s
Resistance - Initial (Ri) (Minimum) 3.5 mOhm
Resistance - Post Trip (R1) (Maximum) 9 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting User Defined
Package Strap
Dimension 2.520" L x 0.382" W (64.00mm x 9.70mm)
Approvals CSA, TUV, UL
Win Source Part Number 780079-LR4-1300F
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian LR4-1300F CAD Model

Description

The Littelfuse Inc. LR4-1300F is a polymeric type circuit protection device that operates in a temperature range of -40°C to 85°C.

  • Maximum Voltage: 20V
  • Maximum Current: 100A
  • Current Trip: 21.2A
  • Current Hold: 13A
  • Initial Resistance: 3.5 mOhm
  • Post-trip Resistance: 9 mOhm
  • Approvals: CSA, TUV, UL
