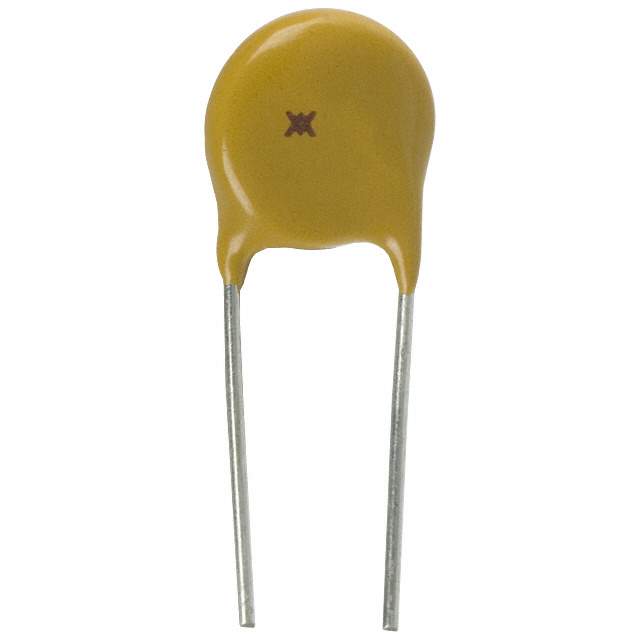

Same model may have multiple batches, images only for reference.

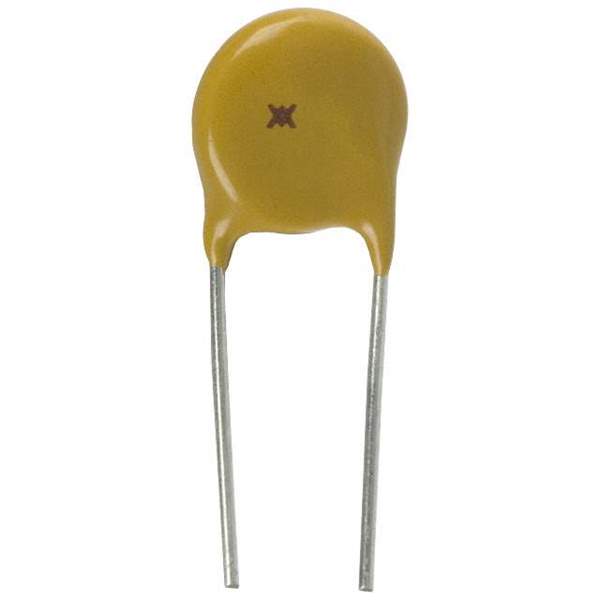

LVR008S Real Image
Same model may have multiple batches, images only for reference.

LVR008S

Part No LVR008S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch®PTC Devices | PTC RESET FUSE 240V 80MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 1.2A
Current - Hold (Ih) (Maximum) 80mA
Current - Trip (It) 190mA
Time to Trip 10s
Resistance - Initial (Ri) (Minimum) 7.4 Ohms
Resistance - Post Trip (R1) (Maximum) 26 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Maximum) 0.430" (10.70mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209622-LVR008S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVR008S CAD Model

Description

The Littelfuse Inc. 1209622-LVR008S is an obsolete circuit protection electronic component.

  • Type: Polymeric
  • Mounting Style: Through hole
  • Approvals: CQC, CSA, TUV, UL
  • Lead Spacing: 0.200" (5.08mm)
  • Voltage-Max: 240V (265V Int)
  • Current-Max: 1.2A
  • Current-Trip (It): 190mA
  • Time to Trip: 10s
  • Temperature Range: -20°C ~ 85°C
  • Manufacturer Package: Radial, disc
  • Current-Hold (Ih) (Maximum): 80mA
  • Height-Seated (Maximum): 0.430" (10.70mm)
  • Resistance-Initial (Ri) (Minimum): 7.4 Ohms
  • Resistance-Post Trip (R1) (Maximum): 26 Ohms
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 500
  • Parts Dimension: 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
