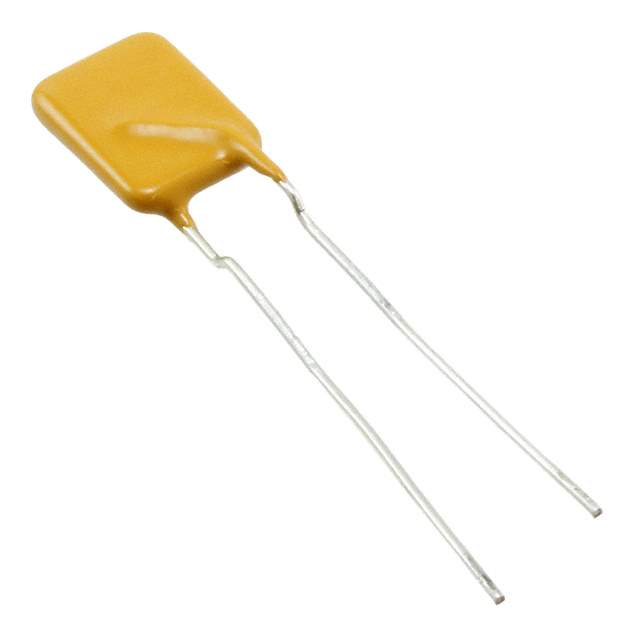

Same model may have multiple batches, images only for reference.

LVR025K-2

Name: LVR025K-2
Brand: Littelfuse Inc.
SKU: 199140
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LVR025K-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 0.25A
Datasheet	LVR025K-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Polymeric
Voltage - Max	240V (265V Int)
Current - Max	3.5A
Current - Hold (Ih) (Max)	250mA
Current - Trip (It)	560mA
Time to Trip	18.5s
Resistance - Initial (Ri) (Min)	1.3 Ohm
Resistance - Post Trip (R1) (Max)	3.8 Ohm
Temperature Range - Operating	-20°C to 85°C
Mounting	Through Hole
Dimension	0.378" L x 0.150" W (9.60mm x 3.80mm)
Height - Seated (Max)	0.740" (18.80mm)
Lead Spacing	0.200" (5.08mm)
Approvals	CQC, CSA, TUV, UL
Win Source Part Number	096508-LVR025K-2
Ultra Librarian 3D Model	Ultra Librarian LVR025K-2 CAD Model

Alternative Products

Description

The LVR025K-2 is a polymeric positive temperature coefficient resettable fuse manufactured by Littelfuse Inc. It is an active product with a temperature range of -20°C to 85°C. The LVR025K-2 is a reliable and efficient resettable fuse that is widely used in various circuit protection applications. It is designed to provide overcurrent protection and is approved by CQC, CSA, TUV, and UL. This product is an ideal solution for applications that require high-performance resettable fuses.
