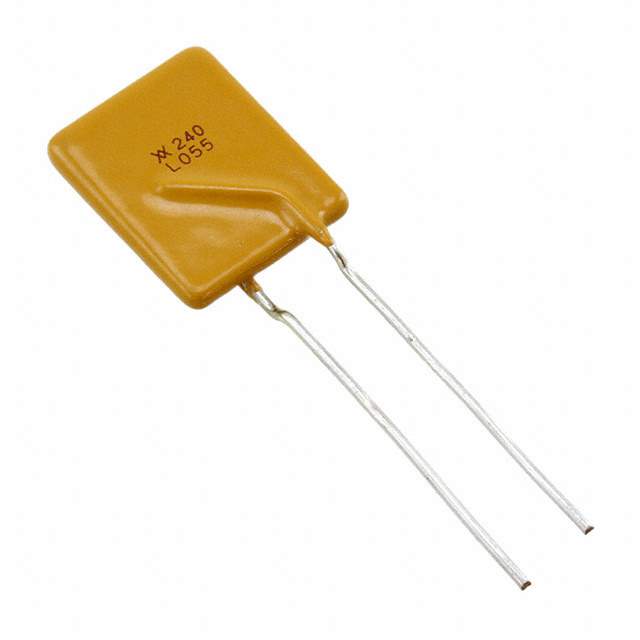

LVR055K Real Image
Same model may have multiple batches, images only for reference.

LVR055K

Part No LVR055K
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices Line-Voltage-Rated Devices | PTC RESET FUSE 240V 550MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 7A
Current - Hold (Ih) (Maximum) 550mA
Current - Trip (It) 1.25A
Time to Trip 26s
Resistance - Initial (Ri) (Minimum) 450 mOhms
Resistance - Post Trip (R1) (Maximum) 1.45 Ohms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.551" L x 0.161" W (14.00mm x 4.10mm)
Height - Seated (Maximum) 0.822" (20.87mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Win Source Part Number 1209634-LVR055K
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVR055K CAD Model

Description

The Littelfuse Inc. 1209634-LVR055K is a polymeric type through-hole mounting style fuse with a voltage rating of 240V (265V Int) and a maximum current rating of 7A.

  • Voltage Rating: 240V (265V Int)
  • Current Rating: 7A
  • Current Trip: 1.25A
  • Time to Trip: 26s
  • Approvals: CQC, CSA, TUV, and UL
  • Lead Spacing: 0.199" (5.05mm)
  • Manufacturer Package: radial, disc
  • Current Hold (Ih) (Maximum): 550mA
  • Height Seated (Maximum): 0.822" (20.87mm)
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 500
