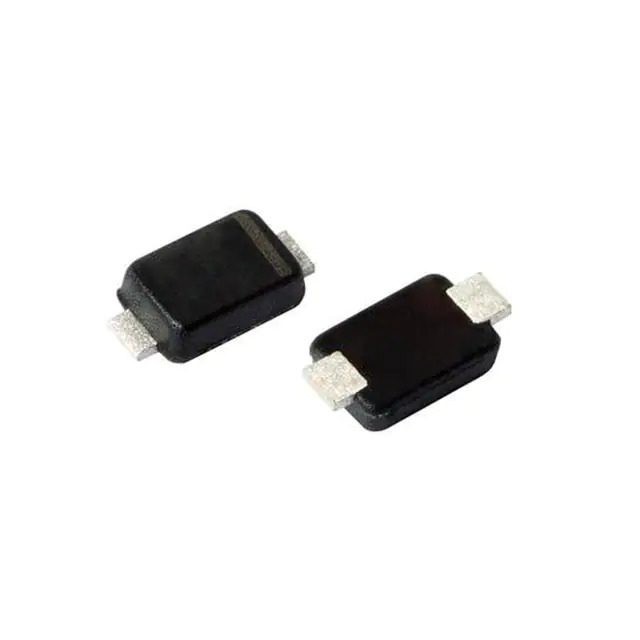

Same model may have multiple batches, images only for reference.
PLZ6V2C-G3/H Vishay
Same model may have multiple batches, images only for reference.

PLZ6V2C-G3/H

Part No PLZ6V2C-G3/H
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 6.28V 960MW DO219AC
Datasheet
PLZ6V2C-G3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series PLZ
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 6.28 V
Tolerance ±2.55%
Power - Max 960 mW
Impedance (Max) (Zzt) 10 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 3 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AC
Supplier Device Package DO-219AC (microSMF)
Base Product Number PLZ6V2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1367555-PLZ6V2C-G3/H
Ultra Librarian 3D Model Ultra Librarian PLZ6V2C-G3/H CAD Model

Description

The 1367555-PLZ6V2C-G3/H is a single zener diode from Vishay General Semiconductor - Diodes Division's PLZ series.

  • Voltage Rating: 6.28V
  • Voltage Tolerance: ±2.55%
  • Power: 960mW
  • Maximum Impedance: 10 Ohms
  • Mounting Type: Surface Mount
  • Package / Case: DO-219AC
  • REACH Compliance: Unaffected
  • ECCN: EAR99
  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 5µA @ 3V
  • Operating Temperature: 150°C
  • Product Status: Active
  • Packaging: Tape & Reel
