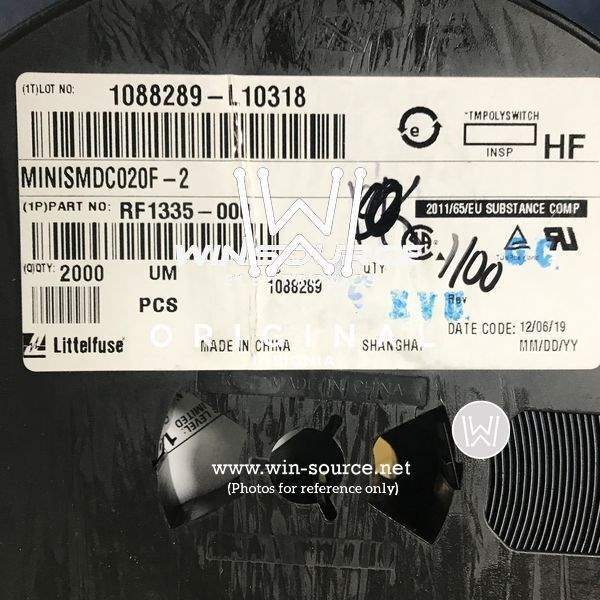

MINISMDC020F-2 Littelfuse Inc. MINISMDC020F-2 label picture MINISMDC020F-2 real image
Same model may have multiple batches, images only for reference.
MINISMDC020F-2 Littelfuse Inc. MINISMDC020F-2 label picture MINISMDC020F-2 real image
MINISMDC020F-2 Littelfuse Inc. MINISMDC020F-2 label picture MINISMDC020F-2 real image
Same model may have multiple batches, images only for reference.

MINISMDC020F-2

Part No MINISMDC020F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH .20A RESET FUSE SMD / PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 30VDC 10A 0.8W 0.02s 0.6Ohm SMD Solder Pad 1812 T/R Automotive
Datasheet
MINISMDC020F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 600 mOhm
Resistance - Post Trip (R1) (Max) 3.3 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.035" (0.89mm)
Approvals CSA, TUV, UL
Win Source Part Number 023354-MINISMDC020F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Family Name MINISMDC
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MINISMDC020F-2 CAD Model

Description

The Littelfuse Inc. MINISMDC020F-2 is a polymeric type circuit protection component that comes with approvals from CSA, TUV, and UL.

  • Approvals: CSA, TUV, and UL
  • Voltage Rating: 30V
  • Maximum Current: 10A
  • Hold Current: 200mA
  • Trip Current: 400mA
  • Thickness: 0.035 inches
  • Dimension: 0.179 inches in length and 0.128 inches in width
  • Applications: Safety, consumer electronics, portable devices, multimedia, automotive, and industrial applications
  • Resistance: 600mOhm initial and 3.3 Ohm post-trip
  • Operating Temperature Range: -40°C to 85°C
  • Halogen-Free Compliant: Yes
  • Popularity: High
  • Supply and Demand: Balance
