MISM-7R-6-10 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

MISM-7R-6-10

Part No MISM-7R-6-10
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches

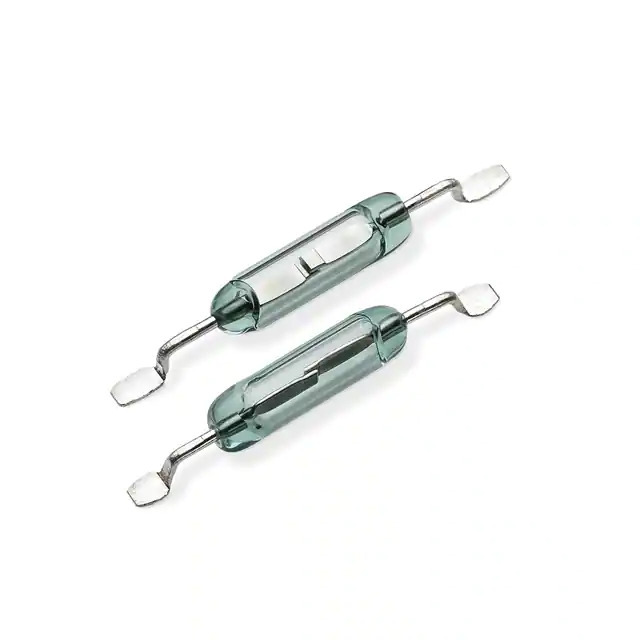

Description SWITCH REED 7MM 6-10AT 10W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series MISM-7
Package Tape & Reel
Product Status Active
Type Glass Body Reed
Circuit SPST-NO
Operate Range 6 ~ 10AT
Release Range -
Current - Switching 180mA (AC), 250mA (DC)
Voltage - Switching AC 120 V
Voltage - Switching DC 170 V
Power - Rated 10W
Operate Time 450 µs
Release Time 0.2 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.540" (13.72mm)
Size - Body 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board 0.090" (2.28mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 500mA (DC)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375870-MISM-7R-6-10
Ultra Librarian 3D Model Ultra Librarian MISM-7R-6-10 CAD Model

Description

The MISM-7R-6-10 is a glass body reed switch designed for use in magnetic switches and manufactured by Littelfuse Inc.

  • Temperature Range: -40°C to 125°C
  • Capacitance: 0.3 pF
  • Power Rating: 10W
  • Circuit Configuration: SPST-NO
  • Termination Style: Gull Wing
  • Operate Range: 6 to 10AT
  • Release Time: 0.2 ms
  • Switching Current (AC): 180mA
  • Switching Current (DC): 250mA
  • Switching Voltage (AC): 120V
  • Switching Voltage (DC): 170V
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Size: 0.071" diameter x 0.276" length
