Same model may have multiple batches, images only for reference.

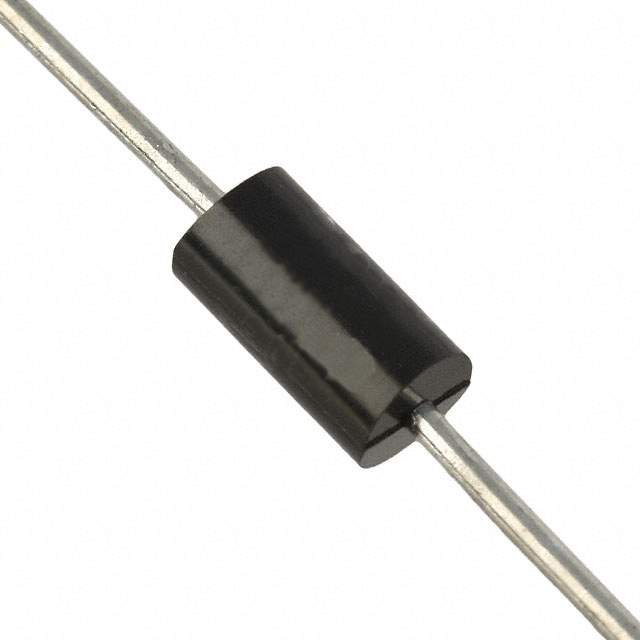

P6KE180A Real Image
Same model may have multiple batches, images only for reference.

P6KE180A

Part No P6KE180A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 154VWM 246VC DO204AC
Datasheet
P6KE180A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection
Family TVS - Diodes
Manufacturer Littelfuse Inc.
Series P6KE
Packaging Reel(TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 154V
Voltage - Breakdown (Min) 171V
Voltage - Clamping (Max) @ Ipp 246V
Current - Peak Pulse (10/1000μs) 2.5A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-204AC, DO-15, Axial
Manufacturer Device Package DO-204AC (DO-15)
Win Source Part Number 026285-P6KE180A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model Ultra Librarian P6KE180A CAD Model

Description

The Littelfuse P6KE180A is a unidirectional TVS diode with a zener type and a voltage breakdown of 171V.

  • Diode Type: zener
  • Voltage Breakdown: 171V
  • Voltage Clamping: 246V @ a peak pulse current of 2.5A
  • Power Rating: 600W
  • Operating Temperature: -55°C to 175°C
  • Package: DO-204AC (DO-15) axial
  • Applications: automotive, computers and computer peripherals, communications and networking, consumer electronics, lighting, sensing and instrumentation, and industrial applications
  • Alternative Parts: P6KE180A-T, BZW06-154, and P6KE180A-G
