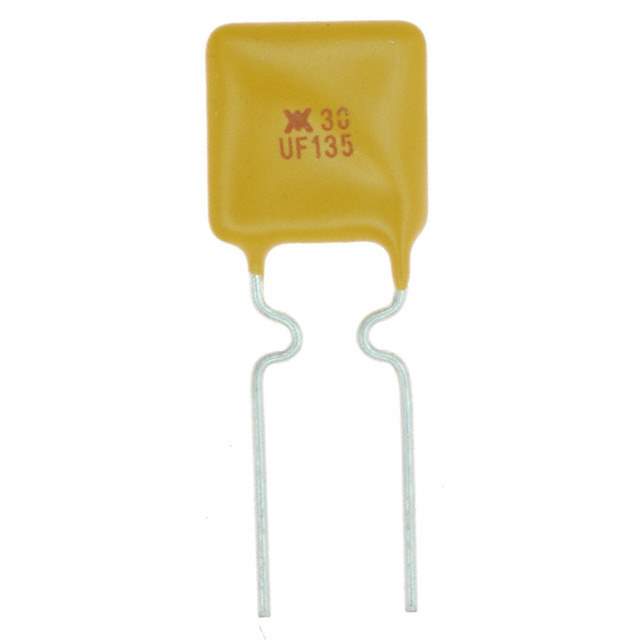

RF2766-000 Real Image
Same model may have multiple batches, images only for reference.

RF2766-000

Part No RF2766-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 1.35A(hold) 2.7A(trip) 30V 100A 0.8W 7.3s 0.04Ohm Radial 8.9 X 3 X 13.5mm T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Height - Seated (Max) 13.5128 mm
Hold Current 1.35 A
Lead Pitch 5.0546 mm
Length 8.89 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 7.3 s
Trip Current 2.7 A
Width 2.9972 mm
Win Source Part Number 1058276-RF2766-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF2766-000 CAD Model

Description

The Littelfuse Inc. PTC Resettable Fuse is an ideal solution for overcurrent protection.

  • Hold Current: 1.35 A
  • Trip Current: 2.7 A
  • Time to Trip: 7.3 s
  • Mounting Type: SMD (SMT)
  • RoHS Compliant: Yes
  • Maximum Current Rating: 100 A
  • Mounting Style: Through-Hole
  • Lead Pitch: 5.0546 mm
  • Supply and Demand Status: Shortage
  • Category: PTC Resettable Fuses
  • Alternative Parts: RUEF135-2, RF2644-000, RF2763-000, RF2767-000, MF-S120, RUEF160-AP, AHEF100
