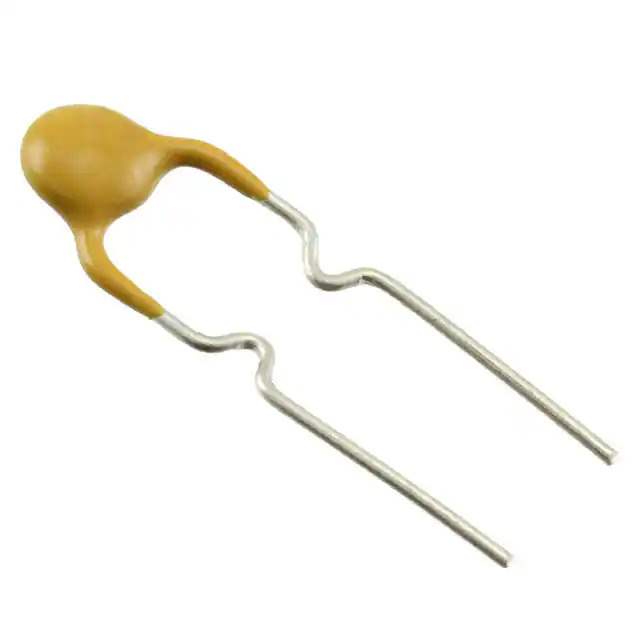

Same model may have multiple batches, images only for reference.

RXEF020

Name: RXEF020
Brand: Littelfuse Inc.
SKU: 662109
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RXEF020
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 72V 200MA RADIAL
Datasheet	RXEF020 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RXEF
Package	Bag
Product Status	Active
Type	Polymeric
Voltage - Max	72V
Current - Hold (Ih) (Max)	200 mA
Current - Trip (It)	400 mA
Current - Max	40 A
Time to Trip	2.2 s
Resistance - Initial (Ri) (Min)	1.83 Ohms
Resistance - Post Trip (R1) (Max)	4.4 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max)	0.461" (11.70mm)
Lead Spacing	0.199" (5.05mm)
Approval Agency	CQC, CSA, TUV, UL
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	662109-RXEF020
Ultra Librarian 3D Model	Ultra Librarian RXEF020 CAD Model

Alternative Products

Description

The RXEF020 is a polymeric resettable fuse from the PolySwitch® RXEF series.

Series: PolySwitch® RXEF
Application: Circuit Protection
Package: Bag
Dimensions: 0.291" diameter x 0.118" thickness
Maximum Voltage Rating: 72V
Maximum Current Rating: 40A
Hold Current (Ih): 200mA
Trip Current (It): 400mA
Time to Trip: 2.2 seconds
Mounting Type: Through-Hole
Package Type: Radial, Disc
Operating Temperature: -40°C to 85°C
Initial Resistance (Ri): 1.83 Ohms
Post-Trip Resistance (R1): 4.4 Ohms
Manufacturer: Littelfuse Inc.
Status: Active
Approvals: CQC, CSA, TUV, and UL
Warning: Please note that this product contains materials that may require a warning under California Prop 65.
