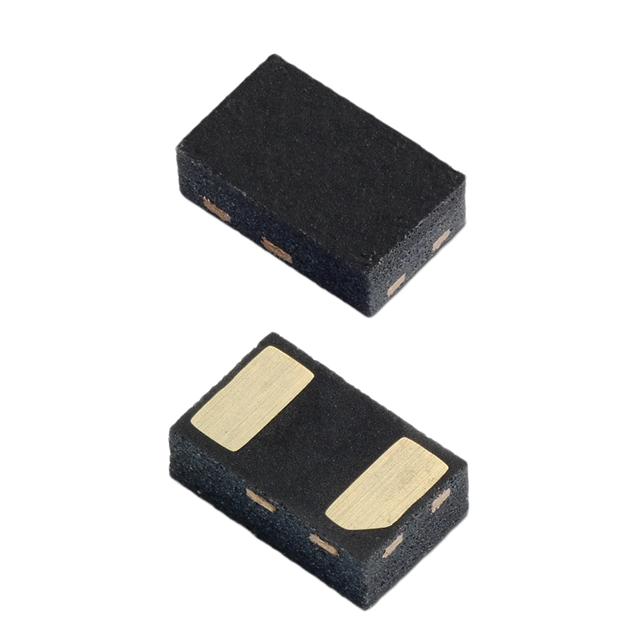

Same model may have multiple batches, images only for reference.

SC1115-01UTG

Name: SC1115-01UTG
Brand: Littelfuse Inc.
SKU: 1019706
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SC1115-01UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 15VWM 27.4VC 2DFN / 27.4V (Typ) Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1.6x1)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SC11xx
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V (Max)
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	27.4V (Typ)
Current - Peak Pulse (10/1000µs)	30A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	180pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	0603 (1610 Metric)
Supplier Device Package	2-DFN (1.6x1)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	18-SC1115-01UTGTR,-1024-SC1115-01UTGCT,18-SC1115-01UTGDKR,18-SC1115-01UTGCT
Standard Package	3,000
Win Source Part Number	1019706-SC1115-01UTG
Ultra Librarian 3D Model	Ultra Librarian SC1115-01UTG CAD Model

Alternative Products

Description

The Littelfuse Inc. 1019706-SC1115-01UTG is a high-quality TVS-Diode that belongs to the Circuit Protection category.

Series: SC11xx
Channel Type: Unidirectional
Number of Channels: 1
Mounting Type: SMD (SMT)
Package: 3,000
Capacitance: 180pF @ 1MHz
