Same model may have multiple batches, images only for reference.

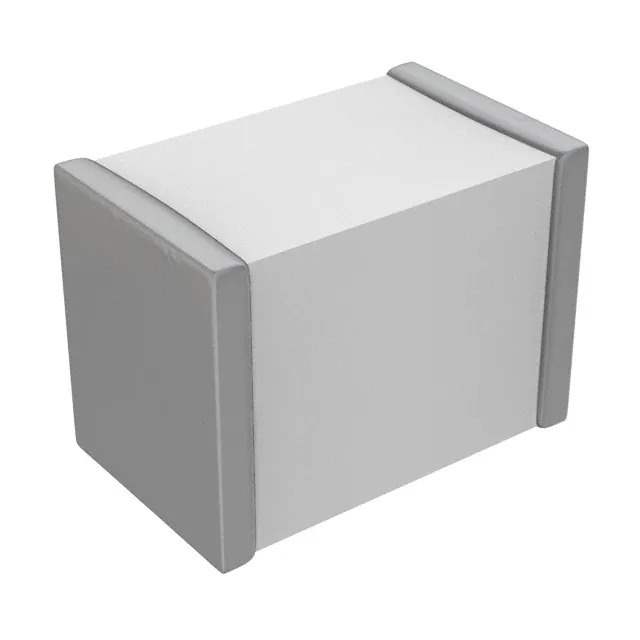

SG500Q Real Image
Same model may have multiple batches, images only for reference.

SG500Q

Part No SG500Q
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 500V 1KA 2 POLE SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series SG
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 500 V
Impulse Discharge Current (8/20µs) 1000A (1kA)
Number of Poles 2
Fail Short No
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 665711-SG500Q
Ultra Librarian 3D Model Ultra Librarian SG500Q CAD Model

Description

The 665711-SG500Q is a gas discharge tube arrester (GDT) component from the SG series.

  • Description: Gas Discharge Tube (GDT)
  • DC Spark Over Voltage: 500V
  • Impulse Discharge Current: 1000A (1kA)
  • Number of Poles: 2
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Manufacturer: Littelfuse Inc.
  • Status: Active
  • Industry Standards and Certifications: Various
